Description

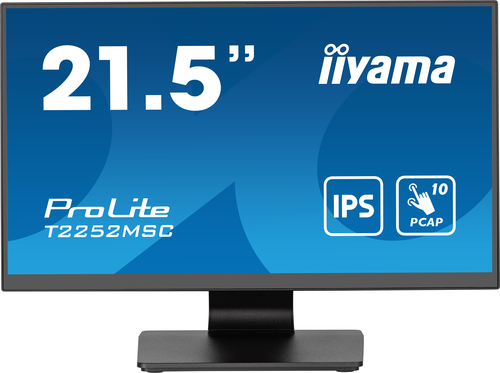

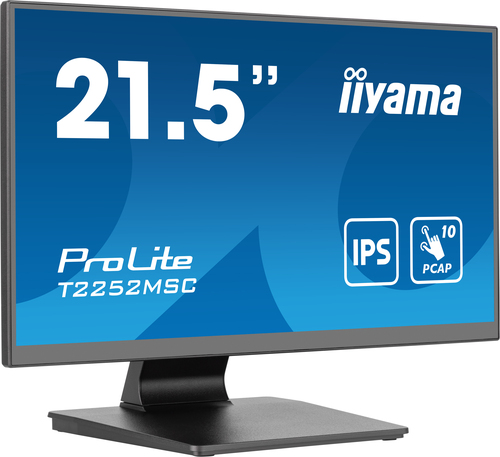

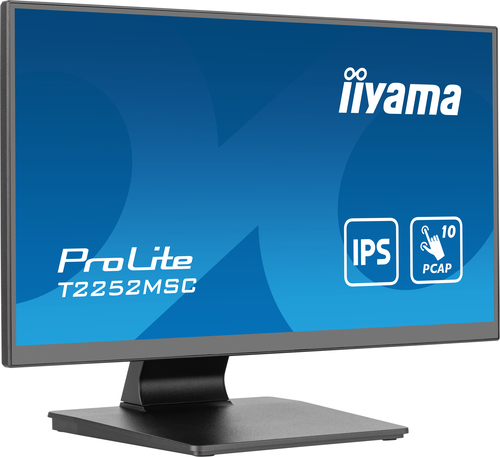

iiyama ProLite T2252MSC-B2, 54.6 cm (21.5"), 1920 x 1080 pixels, Full HD, LCD, 5 ms, Black
With its Full HD (1920x1080) resolution and accurate 10-point DeepContrast PCAP+ touch technology (Optical Bonded PCAP), which ensures smooth and precise touch response and low light reflection, the ProLite T2252MSC-B2 delivers seamless and accurate touch response. In addition, the display is protected from moisture and potential condensation development. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The ProLite T2252MSC-B2 is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
Specifications
| Brand | IIYAMA |
|---|---|
| Manufacturer part no. | T2252MSC-B2 |
| Our part no. | CI43014 |
| EAN | 4948570121809 |
| Category | Monitors & Displays › Other (0352) |
| Weight | 5.6 kg |
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | IPS |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 250 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Display brightness | 225 cd/m² |
| Response time | 5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 89° |
| Viewing angle, vertical | 89° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.249 x 0.249 mm |
| Horizontal scan range | 30 - 83 kHz |
| Viewable size, horizontal | 47.9 cm |
| Viewable size, vertical | 26 cm |
| Display diagonal (metric) | 54.5 cm |
| Surface hardness | 7H |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| Palm rejection | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports | 2 |
| Number of downstream ports | 2 |
| USB Touch port | Yes |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 90° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, German, English, French, Italian, Japanese, Dutch, Polish, Russian |
| Power | |
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10.2 kWh |
| Power consumption (typical) | 11 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Width (with stand) | 493.5 mm |
| Depth (with stand) | 239.5 mm |
| Height (with stand) | 361.5 mm |
| Weight (with stand) | 4.5 kg |
| Packaging data | |
| Package width | 560 mm |
| Package depth | 150 mm |
| Package height | 350 mm |
| Package weight | 6 kg |
| Packaging content | |
| Cables included | AC, USB, HDMI |
| Quick start guide | Yes |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| User controls | picture adjust (brightness, contrast, i-Style, adv. contrast, ECO, OD, X-Res), color settings (gamma, rgb range, color temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (horizontal position, vertical pos., time, background), extra (reset, dcc/ci, signal select, volume, mute, opening logo, led, touch switch) |
| Brightness | 225 cd/m² |
| Active display area (W x H) | 478.6 x 260 mm |
| Touch method | stylus, finger, glove |
| USB ports quantity | 2 |
| Weight | 4.5 kg |
| Height | 361.5 mm |
| Width | 493.5 mm |
| Depth | 239.5 mm |
| Control panel | Joystick: right/menu/enter, left/input/exit, up/eco, down, power |
| Compliance certificates | CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
