Description

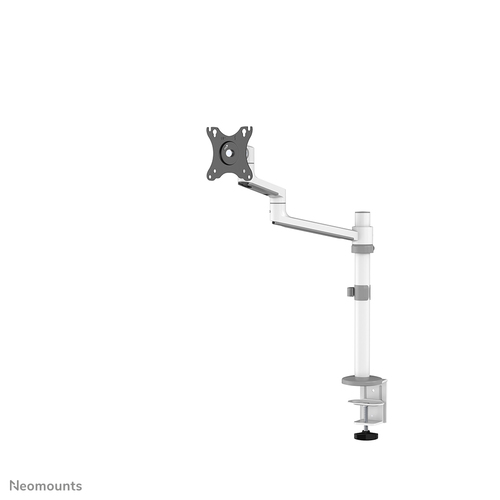

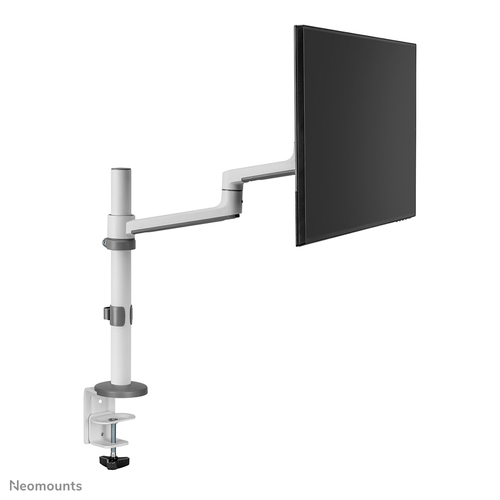

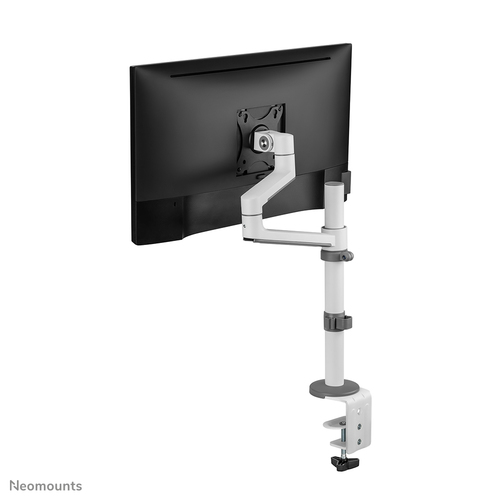

Neomounts DS60-425WH1 Monitor arm 17-27" - space saving, Clamp/Grommet, 8 kg, 43.2 cm (17"), 68.6 cm (27"), 100 x 100 mm, White
The Neomounts DS60-425WH1 NEXT Lite is a full motion desk mount for screens up to 27" with a maximum weight capacity of 8 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screen. Additionally, the mount has manual height and depth adjustment to create the perfect working position.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425WH1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | DS60-425WH1 |
| Our part no. | CI51389 |
| EAN | 8717371449810 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 2.9 kg |
| Mounting | |
| Maximum weight capacity | 8 kg |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8 cm |
| Clamp mount desk thickness (max) | 8 cm |
| Grommet mount desk thickness (max) | 4 cm |
| Distance to the wall (min) | 12.8 cm |
| Distance to the wall (max) | 45.9 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 275 - 555 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 66 - 398 mm |
| Width adjustment | 33.2 cm |
| Tilt angle range | -30 - 90° |
| Swivelling | Yes |
| Swivel angle range | -90 - 90° |
| Angle of rotation | 360° |
| Cable management | Yes |
| Feet | Yes |
| Feet colour | Black |
| Design | |
| Housing material | Steel |
| Product colour | White |
| Orientation | Landscape/Portrait |
| Accepts padlock | No |
| Weight & dimensions | |
| Width | 453 mm |
| Depth | 459 mm |
| Height | 611 mm |
| Weight | 2.54 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 140 mm |
| Package depth | 103 mm |
| Package height | 440 mm |
| Package net weight | 3 kg |
| Package weight | 3 kg |
| Packaging content | |
| Clamp included | Yes |
| VESA mount included | Yes |
| Other features | |
| Width adjustment range | 0 - 332 mm |
| Logistics data | |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 455 mm |
| Master (outer) case gross weight | 18.2 kg |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 15.2 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 120 pc(s) |
