Description

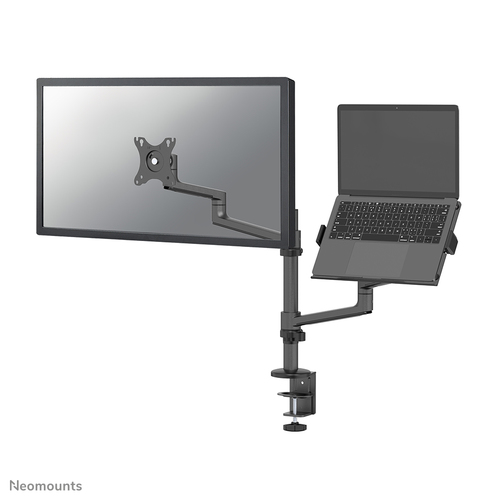

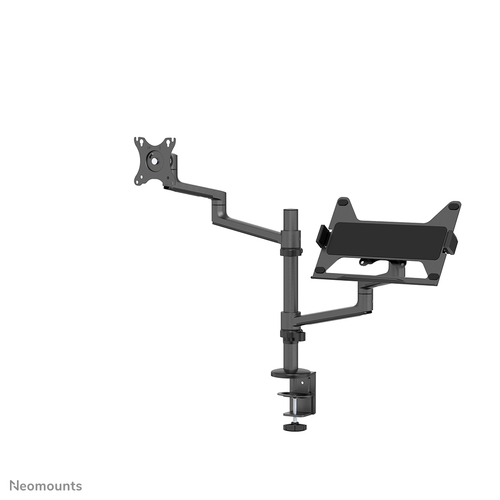

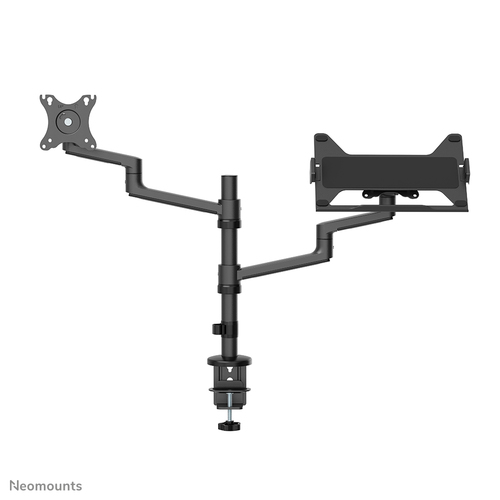

Neomounts DS20-425BL2 Monitor arm with laptop holder 17-27" - space saving, Clamp/Grommet, 8 kg, 43.2 cm (17"), 68.6 cm (27"), 100 x 100 mm, Black

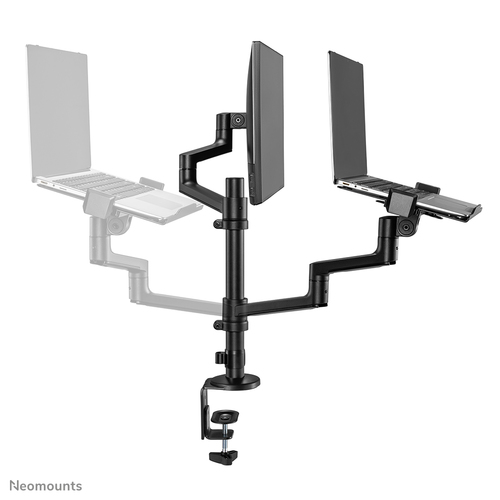

The Neomounts DS20-425BL2 NEXT Lite is a full motion desk mount for screens up to 27" and laptops up to 17,3" with a maximum weight capacity of respectively 8 and 5 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal height and viewing angle for your screen and laptop. Additionally, the mount has manual height and depth adjustment to create the perfect working position.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS20-425BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS20-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | DS20-425BL2 |
| Our part no. | CI51395 |
| EAN | 8717371449865 |
| Category | Monitors & Displays › Screen Filters & Covers |
| Weight | 5.5 kg |
| Mounting | |
| Maximum weight capacity | 8 kg |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8 cm |
| Distance to the wall (min) | 16.2 cm |
| Distance to the wall (max) | 49.4 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 275 - 555 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 66 - 398 mm |
| Width adjustment | 33.2 cm |
| Tilt angle range | -30 - 90° |
| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
| Design | |
| Housing material | Steel |
| Product colour | Black |
| Weight & dimensions | |
| Width | 966 mm |
| Depth | 494 mm |
| Height | 611 mm |
| Weight | 4.55 kg |
| Packaging data | |
| Package width | 233 mm |
| Package depth | 150 mm |
| Package height | 442 mm |
| Package net weight | 5.5 kg |
| Package weight | 5.5 kg |
| Package type | Box |
| Other features | |
| Adjustable | Yes |
| Width adjustment range | 0 - 332 mm |
| VESA mounting | Yes |
| Technical details | |
| Product type | Notebook & monitor arm |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 473 mm |
| Master (outer) case height | 465 mm |
| Master (outer) case gross weight | 17.1 kg |
| Products per master (outer) case | 3 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 13.7 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 63 pc(s) |
