Description

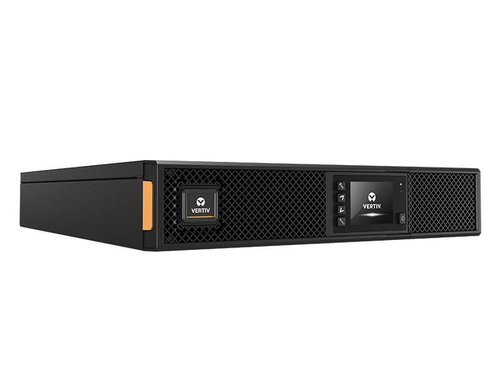

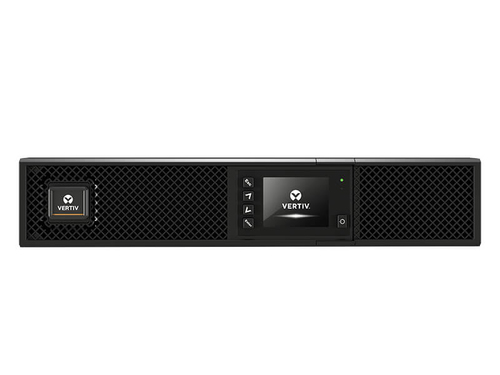

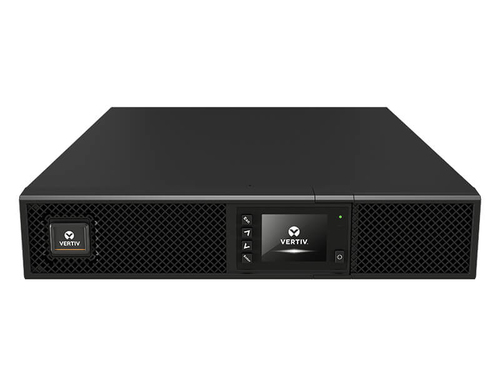

Vertiv Liebert GXT5 Double Online Conversion UPS -3000VA/3000W| 230V| With Rackmount Kit | GXT5-3000IRT2UXL, Double-conversion (Online), 3 kVA, 3000 W, Pure sine, 115 V, 288 V
The Vertiv Liebert GXT5 UPS 3000VA/3000W is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environments including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a three-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | GXT5-3000IRT2UXL |
| Our part no. | CI60074 |
| EAN | 0767041026580 |
| Category | Power & UPS › UPS |
| Weight | 40.5 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 3000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 115 V |
| Input operation voltage (max) | 288 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output voltage regulation | ±3% |
| Efficiency | 95% |
| Efficiency (ECO mode) | 98% |
| Power factor | 1 |
| ECO mode | Yes |
| Noise level | 48 dB |
| Surge protection | Yes |

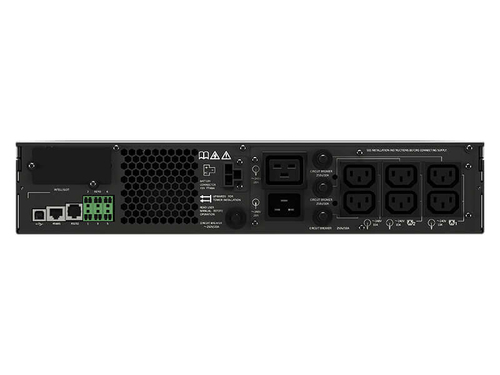

| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 7 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 3.3 min |
| Typical backup time at half load | 10.8 min |
| Hot-swap battery | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Product colour | Black |
| Control type | Buttons |
| Display type | LCD |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | REACH, RoHS, WEEE |
| Packaging content | |
| Cables included | USB cable |
| Quick installation guide | Yes |
| Safety regulation & standards | |
| Safety | EN 62040-1:2008+A1:2013 |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 430 mm |
| Depth | 540 mm |
| Height | 85 mm |
| Weight | 28.5 kg |
| Packaging data | |
| Package width | 717 mm |
| Package depth | 570 mm |
| Package height | 262 mm |
| Package weight | 33.4 kg |
