Description

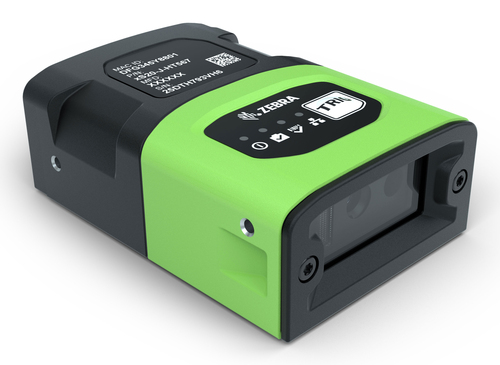

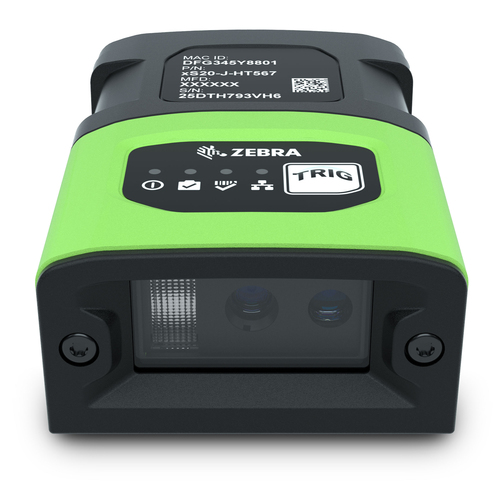

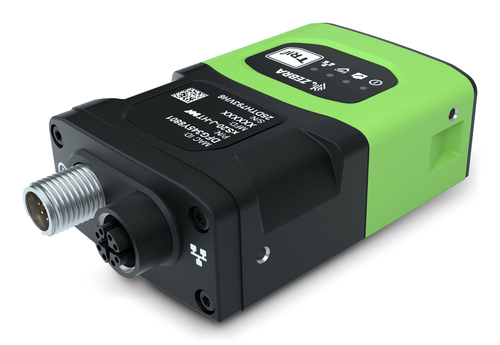

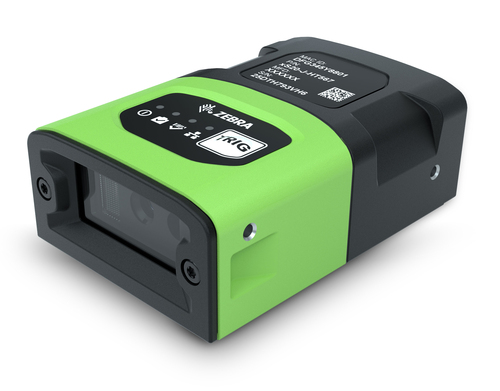

Zebra FS20, Fixed bar code reader, 1D/2D, CMOS, Code 93, Codabar, Code 128, MSI-Plessey, U.P.C., Code 39, Aztec Code, PDF417, Data Matrix, QR Code, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417, 1280 x 800 pixels

Easily integrate high quality scanning into your network The increasing demands of international commerce and its global supply chain are pressuring companies to deliver more — and to do it faster. From manufacturing to logistics to the end customer, success is driven by the ability to quickly move and track the products that drive your business.

Address it all with the compact Zebra FS20 Fixed Industrial Scanner.1 With the FS20, it’s easy to track and trace every item as it moves through production, storage and fulfillment. Scan barcodes on components moving through your assembly line to ensure the right part is used at the right time — and enable rapid targeted recalls of products that contain defective parts. Scan barcodes on items as they are placed on warehouse shelves to provide visibility into real time inventory. And scan barcodes when fulfilling orders to ensure the right items are sent to the right customer. Whatever you want to track and trace, the FS20 makes it easy.

Specifications

BrandZEBRA
Manufacturer part no.FS20-SR10Z2-3C00W
Our part no.CI62771
CategoryBarcode Scanners › Fixed & Presentation Scanners
Weight0.2 kg
Scanning
TypeFixed bar code reader
Scanner type1D/2D
Sensor typeCMOS
Linear (1D) barcodes supportedCode 93, Codabar, Code 128, MSI-Plessey, U.P.C., Code 39
2D (matrix & stacked) barcodes supportedAztec Code, PDF417, Data Matrix, QR Code, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417
Optical sensor resolution (W x H)1280 x 800 pixels
Horizontal field of view35°
Vertical field of view26°
Ports & interfaces
Connectivity technologyWired
Standard interfacesRJ-45, RS-232
Ethernet LAN data rates10,100,1000 Mbit/s
Performance
Housing materialAluminium
International Protection (IP) codeIP65, IP67
Protection featuresVibration proof, Shock resistant
LED indicatorsYes
Product colourBlack, Green
Power
Power source typeDC
Power consumption (typical)7.5 W
Input voltage10 - 30 V
Power consumption313 mA
Weight & dimensions
Width54.6 mm
Depth94.2 mm
Height28.3 mm
Weight195 g
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 90%
