Description

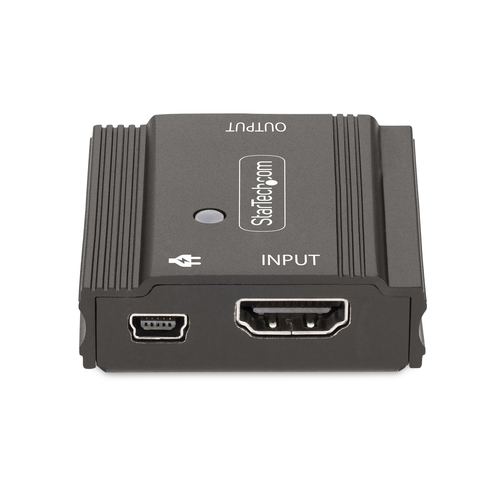

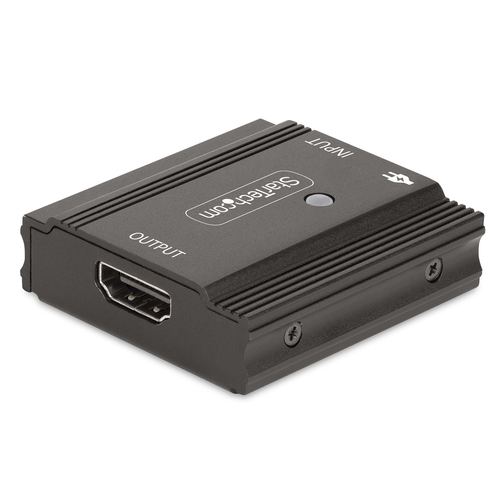

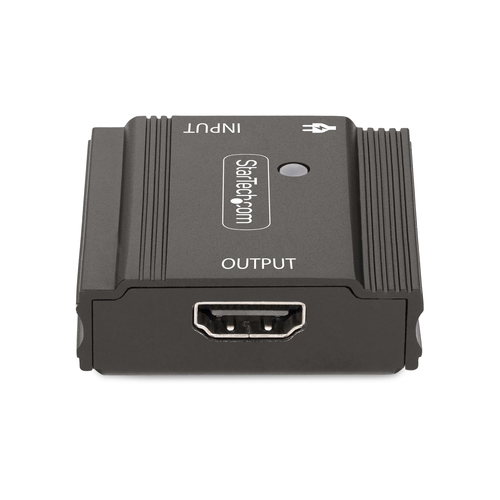

StarTech.com 33ft (10m) 8K 60Hz HDMI Signal Booster, Active HDMI 2.1 Inline Repeater and Video Signal Amplifier up to 8K 60Hz/4K 144Hz, Compact HDMI Cable Extender - HDMI Signal Extension - TAA, 7680 x 4320 pixels, AV repeater, 10 m, Wired, Black, HDCP
Amplify and extend an 8K 60Hz HDMI® signal, connecting two DSC-enabled devices, using two Ultra High Speed HDMI cables
Combine two HDMI 2.1 cables into one extra-long 33ft (10m) cable, using this HDMI Signal Booster. Connect a DSC-enabled source and display for resolutions of up to 8K at 60Hz.
Maintain 8K 60Hz Video
Extend an 8K 60Hz HDMI signal over existing HDMI cabling at up to 33ft (10m). It supports lower resolutions at longer distances, such as 4K 60Hz at 83ft (25m). This HDMI 2.1 compliant device supports CEC, HDR10, HDCP, DSC, and 7.1ch audio.
Hassle-Free Installation
The TAA-Compliant HDMI signal amplifier requires no drivers or software. Its compact form factor and metal enclosure make it suitable for installation in a variety of environments. An included 5ft (1.5m) USB Type-A power cable is provided to connect to an available USB port or USB wall charger, if required.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | 33FT-8K-HDMI-BOOSTER |
| Our part no. | CI63472 |
| EAN | 0065030900423 |
| Category | Cables & Adapters › HDMI Cables & Extenders |
| Weight | 0.1 kg |
| Features | |
| Type | AV repeater |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum transfer distance | 10 m |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Maximum refresh rate | 144 Hz |
| Audio output channels | 7.1 channels |
| LED indicators | Power |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1080, 3440 x 1440, 3840 x 2160, 5120 x 1440, 7680 x 4320 |
| Bandwidth | 48 Gbit/s |
| HDCP | Yes |
| Rack mounting | No |
| Consumer Electronics Control (CEC) support | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| HDCP version | 1.4/2.2/2.3 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.1 |
| USB ports quantity | 1 |
| USB connector type | Mini-USB |
| Power | |
| Power source type | USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 46 mm |
| Depth | 49 mm |
| Height | 16 mm |
| Weight | 57 g |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 157 mm |
| Package height | 48 mm |
| Package weight | 60 g |
| Packaging content | |
| Cables included | Mini-USB |
| Quick start guide | Yes |
| Logistics data | |
| Master (outer) case width | 425 mm |
| Master (outer) case length | 170 mm |
| Master (outer) case height | 175 mm |
| Products per master (outer) case | 12 pc(s) |
