Description

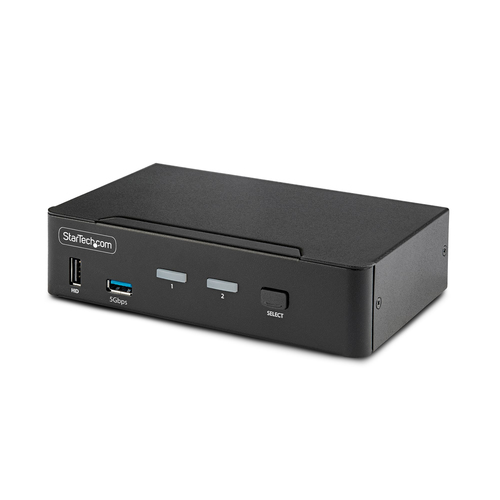

StarTech.com 2-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP 1.4, 2x USB 3.0 Ports, 4x USB 2.0 HID Ports, Push-Button & Hotkey Switching, TAA Compliant - OS Independent, Metal Housing, 7680 x 4320 pixels, 8K Ultra HD, 36 W, Black
Share a mouse, keyboard, USB 5Gbps Hub, and 8K 60Hz DisplayPort between two DisplayPort enabled computers
Share and switch between two USB-A and DisplayPort-enabled computers, using this DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices.
High-Resolution 8K 60Hz Video
This KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120x1440 at 60Hz. Ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Customizable Switching
This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
Universal Compatibility
The TAA-Compliant KVM Switch offers universal compatibility, working with all operating systems, including Windows, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms, including Intel and AMD.
Reliable Performance
The durable metal housing helps prevent Electro-magnetic Interference (EMI). Overcurrent Protection (OCP) ensures peripherals don't overdraw power, reducing the occurrence of device dropouts or shutdowns.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | D86A2-2-PORT-8K-KVM |
| Our part no. | CI65617 |
| EAN | 0065030894906 |
| Category | Networking › KVM & Extenders |
| Weight | 1.1 kg |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity | 6 |
| Console DisplayPorts ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| Performance | |
| HD type | 8K Ultra HD |
| Maximum resolution | 7680 x 4320 pixels |
| Data transfer rate (max) | 5 Gbit/s |
| Scan interval | 3,8,15,30 s |
| High Dynamic Range (HDR) supported | Yes |
| HDCP | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| Chipset | GL-3523 |
| HDCP version | 1.4/2.2 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 130000 h |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Power source | DC |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| Compatible power plug types | EU, JP, UK, US |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS, Trade Agreements Act (TAA) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 160 mm |
| Height | 40 mm |
| Weight | 600 g |
| Packaging data | |
| Package width | 187 mm |
| Package depth | 242 mm |
| Package height | 93 mm |
| Package weight | 1 kg |
| Packaging content | |
| Quick installation guide | Yes |
| Rubber feet | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Master (outer) case width | 397 mm |
| Master (outer) case length | 257 mm |
| Master (outer) case height | 300 mm |
| Products per master (outer) case | 60 pc(s) |
