Description

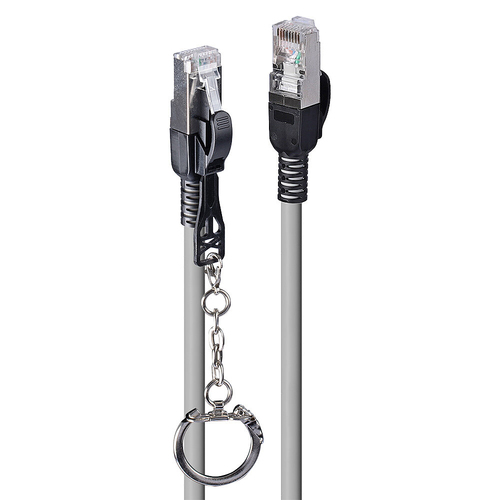

Lindy 5m Cat.6A S/FTP Locking Network Cable, Grey, 5 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Grey

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. The Lindy Cat.6A Security Network Cable is a simple yet highly effective way of preventing accidental or malicious removal of cables on your network. Fully tamper resistant, Security key locks in the plug for added physical security allowing for removal only with the supplied key. Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions. Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m

Specifications

BrandLINDY
Manufacturer part no.47606
Our part no.CI68690
EAN4002888476065
CategoryCables & Adapters › Network Cables
Weight0.1 kg
Features
Product colourGrey
Cable length5 m
Cable standardCat6a
Cable shieldingS/FTP (S-STP)
Connector 1RJ-45
Connector 2RJ-45
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingNickel/Gold
Connector shieldingYes
Connector shield materialAluminium
Jacket materialLow smoke zero halogen (LSZH)
Conductor materialCopper
AWG wire size26
Frequency500 MHz
Bend radius (min)7.2 cm
Nominal attenuation49.3dB/100m @ 500MHz
Operational conditions
Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-10 - 60 °C
Certificates
CertificationRoHS, REACH
Weight & dimensions
Outer diameter6 mm
Connector 1 dimensions (WxDxH)11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH)11.6 x 21.5 x 8.3 mm
Packaging data
Package typePolybag
