Description

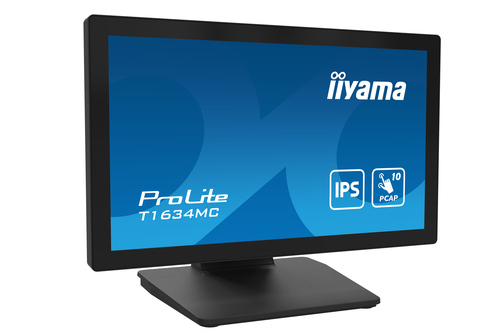

iiyama ProLite T1634MC-B1S, 39.6 cm (15.6"), 1920 x 1080 pixels, Full HD, LED, 25 ms, Black
The ProLite T1634MC-B1S uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications.
Specifications
| Brand | IIYAMA |
|---|---|
| Manufacturer part no. | T1634MC-B1S |
| Our part no. | CI70241 |
| EAN | 4948570122110 |
| Category | Monitors & Displays › Other (0352) |
| Weight | 5.1 kg |
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 450 cd/m² |
| Display brightness (typical) | 450 cd/m² |
| Display brightness | 405 cd/m² |
| Response time | 25 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 700:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.2 million colours |
| Response time (fast) | 25 ms |
| Pixel pitch | 0.179 x 0.179 mm |
| Horizontal scan range | 30 - 84 kHz |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Digital horizontal frequency | 30 - 84 kHz |
| Display diagonal (metric) | 39.5 cm |
| Surface hardness | 7H |
| Colour depth | 6 bit |
| Colour gamut | 90% |
| Performance | |
| Palm rejection | Yes |
| Design | |
| Market positioning | Office |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 2.4 mm |
| Ports & interfaces | |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 90 - 5° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10.1 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Width (with stand) | 381 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 285.5 mm |
| Weight (with stand) | 3.4 kg |
| Packaging data | |
| Package width | 445 mm |
| Package depth | 150 mm |
| Package height | 355 mm |
| Package weight | 5.18 kg |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | Yes |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Second display effective viewing area | 344.2 x 193.6 mm |
| AC adapter included | Yes |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Brightness | 405 cd/m² |
| Packaging content | AC adapter |
| Active display area (W x H) | 344.2 x 193.6 mm |
| Touch method | stylus, finger, glove (latex) |
| Weight | 3.4 kg |
| Height | 285.5 mm |
| Width | 381 mm |
| Depth | 200 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| Technical details | |
| Native refresh rate | 60 Hz |
