Description

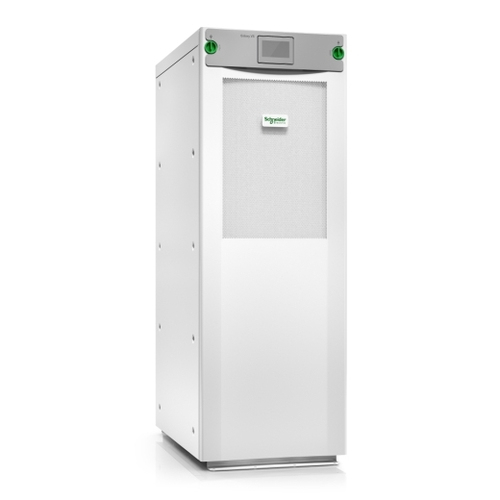

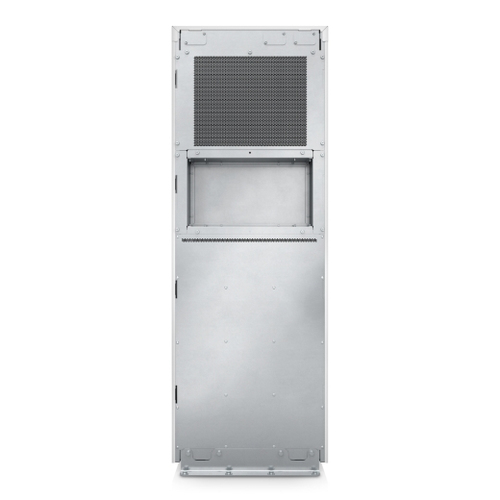

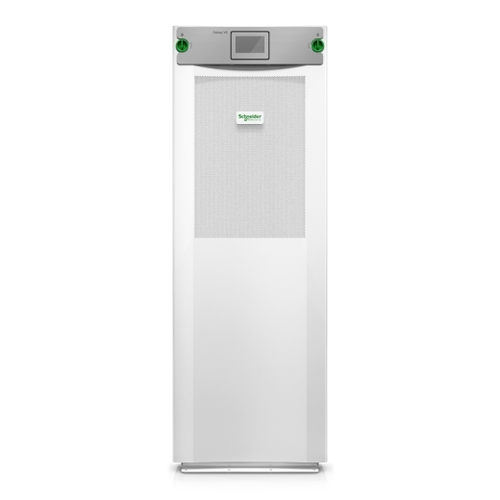

APC Galaxy VS UPS 30kW 400V with N+1 power module for external batteries, Start-up 5x8, Double-conversion (Online), 30 kVA, 30000 W, Sine, 340 V, 460 V
Highly efficient, easy-to-deploy 30 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and one additional power module for N+1 redundancy.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | GVSUPS30KRHS |
| Our part no. | CI74806 |
| EAN | 0731304418276 |
| Category | Power & UPS › UPS |
| Weight | 275 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 400 V |
| Output frequency | 50/60 Hz |
| Maximum current | 54 A |
| Heat dissipation | 3122 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 1% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 68 dB |
| Power protection features | Overload, Short circuit |
| Audible alarm(s) | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP21 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 1005.84 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | EN/IEC 62040-1, EN/IEC 62040-2, FCC 15 A, IEC 60721-4-2 2M2, UL 1778 5 |
| Packaging content | |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 250 kg |
| Packaging data | |
| Package width | 990 mm |
| Package depth | 640 mm |
| Package height | 1680 mm |
| Package weight | 250 kg |
| Logistics data | |
| Warranty period | 1 year(s) |
