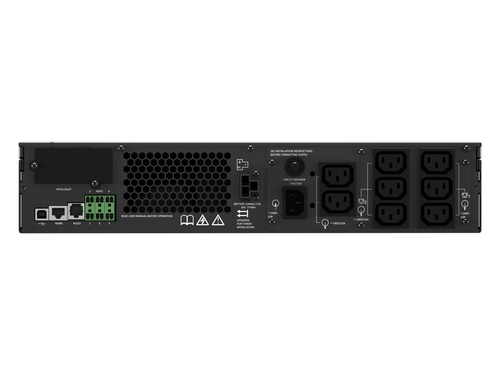

Vertiv Liebert GXT5 Double Online Conversion UPS - 750VA/750W | 230V | With Rackmount Kit | GXT5-750IRT2UXL

Description

Vertiv Liebert GXT5 Double Online Conversion UPS - 750VA/750W | 230V | With Rackmount Kit | GXT5-750IRT2UXL, Double-conversion (Online), 0.75 kVA, 750 W, Pure sine, 115 V, 288 V

The Vertiv Liebert GXT5 UPS 750VA/750W is a 2U UPS solution that ensures the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environments, including 200/208/220/230/240V user configurable AC power, and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.

Specifications

BrandVERTIV
Manufacturer part no.GXT5-750IRT2UXL
Our part no.CI76211
EAN0767041026467
CategoryPower & UPS › UPS
Weight23.2 kg
Features
UPS topologyDouble-conversion (Online)
Output power capacity0.75 kVA
Output power750 W
WaveformPure sine
Input operation voltage (min)115 V
Input operation voltage (max)288 V
Input frequency40 - 70 Hz
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Output voltage regulation3%
Response time0 ms
Number of input phases1
Efficiency95%
Input power factor0.99
Emergency Power Off (EPO)Yes
Noise level46 dB
Power protection featuresOverload
Audible alarm(s)Yes
Ports & interfaces
AC outlet typesC13 coupler, C19 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
Serial interface typeRS-232, RS-485
Serial ports quantity1
Emergency Power Off (EPO) connectorYes
Battery
Battery technologySealed Lead Acid (VRLA)
Battery capacity9 VAh
Battery voltage12 V
Typical backup time at full load10.5 min
Typical backup time at half load25.7 min
Battery recharge time3 h
Hot-swap batteryYes
Design
Form factorRackmount/Tower
Product colourBlack
Display typeLCD
International Protection (IP) codeIP20
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Certificates
Compliance certificatesREACH, RoHS
CertificationIEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6); FCC 15 A CISPR22 A(RFI)
Safety regulation & standards
SafetyIEC62040-1:2008, GS; UL1778, c-UL
Sustainability
Sustainability certificatesENERGY STAR
Weight & dimensions
Width430 mm
Depth400 mm
Height85 mm
Weight16.8 kg
Packaging data
Package width517 mm
Package depth617 mm
Package height262 mm
Package weight21.4 kg
Logistics data
Harmonized System (HS) code85078000
Other features
Battery typeVRLA
Output connectionsIEC320 C13
Input connection typeC14
Dimensions (WxDxH)430 x 400 x 85 mm
Nominal output voltage230 V
Nominal input voltage230 V
Non-operating relative humidity (non-condensing)0 - 95%
Overload protectionYes
Package dimensions (WxDxH)517 x 617 x 262 mm
BypassYes
