Description

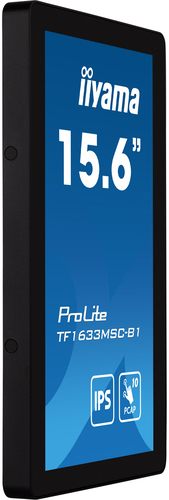

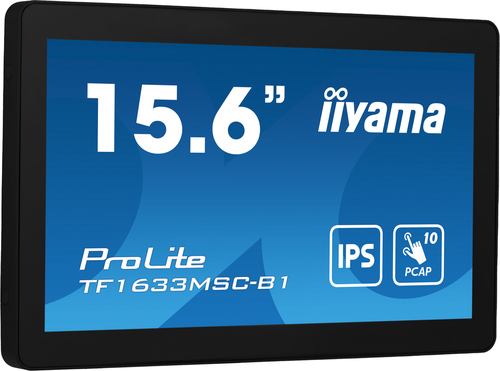

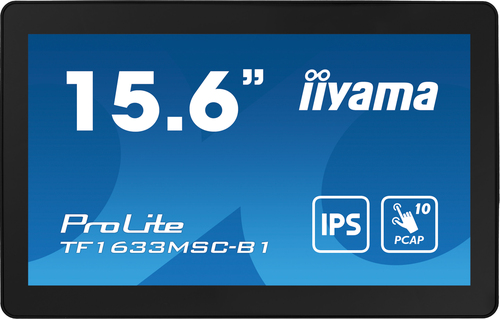

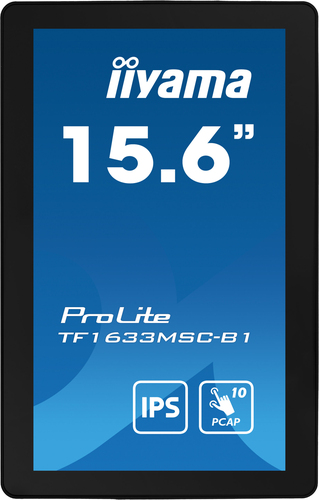

iiyama ProLite TF1633MSC-B1, 39.6 cm (15.6"), 1920 x 1080 pixels, Full HD, 5 ms, Black
The ProLite TF1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The integrated cable management system hides all the cables. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for kiosk integrators and Instore Retail.
Specifications
| Brand | IIYAMA |
|---|---|
| Manufacturer part no. | TF1633MSC-B1 |
| Our part no. | CI87010 |
| EAN | 4948570122530 |
| Category | Monitors & Displays › Other (0352) |
| Weight | 3.9 kg |
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 450 cd/m² |
| Display brightness | 385 cd/m² |
| Response time | 5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.179 x 0.179 mm |
| Horizontal scan range | 30 - 68 kHz |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Display diagonal (metric) | 39.5 cm |
| DDC/CI | Yes |
| Performance | |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| Palm rejection | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Design | |
| Market positioning | Home |
| Product colour | Black |
| Front bezel colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 2.0 |
| Number of downstream ports | 2 |
| HDMI | Yes |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | 90 - 5° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Number of OSD languages | 12 |
| Power | |
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 7.7 kWh |
| Power consumption (typical) | 12 W |
| Power consumption (standby) | 8 W |
| Power consumption (off) | 0.5 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Width (with stand) | 389 mm |
| Depth (with stand) | 45.5 mm |
| Height (with stand) | 246.5 mm |
| Weight (with stand) | 2 kg |
| Width (without stand) | 389 mm |
| Depth (without stand) | 45.5 mm |
| Height (without stand) | 246.5 mm |
| Weight (without stand) | 2 kg |
| Packaging data | |
| Package width | 475 mm |
| Package depth | 169 mm |
| Package height | 343 mm |
| Package weight | 3.9 kg |
| Package type | Box |
| Packaging content | |
| Cables included | AC, USB, HDMI |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| International Protection (IP) code | IP54 |
| AC adapter included | Yes |
| User controls | Luminance (contrast, brightness, i-Style color, adv. contrast, overdrive), image setup (aspect ratio), color temp., OSD setup (H. position, V. position, timeout, language, touch wake up), extra (input select, DDC/CI, reset, opening logo, LED, volume, information) |
| Brightness | 385 cd/m² |
| Packaging content | AC adapter |
| Active display area (W x H) | 344.2 x 193.6 mm |
| Touch method | stylus, finger, glove (latex) |
| USB ports quantity | 2 |
| Weight | 2 kg |
| Height | 246.5 mm |
| Width | 389 mm |
| Depth | 45.5 mm |
| Control panel | Power, Menu, Volume +, Volume -, Input |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| Technical details | |
| Native refresh rate | 60 Hz |
