Description
SilverNet SIL-WCAP-AX, 2.4 GHz, 5 GHz, 1800 Mbit/s, WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP, 10,100,1000 Mbit/s

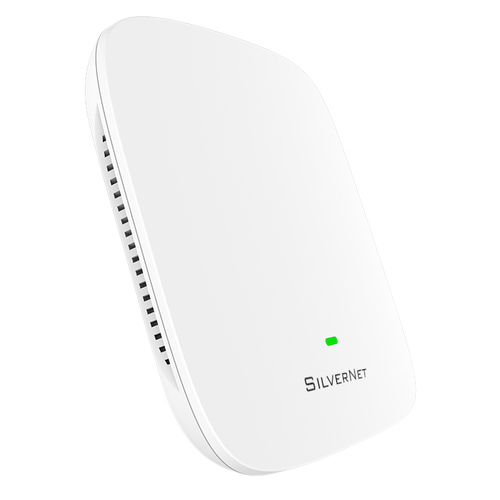

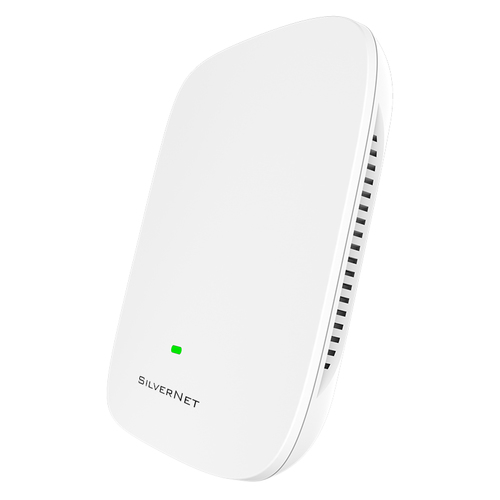

The SIL WCAP-AX is a compact ceiling access point that offers robust performance in an elegant shell.
As part of the new Intelligent Wi-Fi 6 "Aero" range by SilverNet, the cloud-managed WCAP-AX is designed to build high performance enterprise Wi-Fi networks, and make enterprise management simple.
Offering superior indoor Wi-Fi range, it can provide integrated Power Over Ethernet via 48V PoE or 12V DC. This means it is perfect for a number of uses, particularly commercial and hospitality applications. From providing hotspot functionality, to supporting various hotspot authentication methods such as vouchers, local accounts or, for example, Facebook, it provides strong support across shopping centres, schools, hotels and more.
With options to manage the AP locally or via the cloud, the flexibility of this equipment allows you to offer a full, end-to-end managed Wi-Fi service to meet your client’s needs. It is also efficient when used as a standalone AP.
Keep things running smoothly for both you and your customer. You’ll stay informed about your customer’s Wi-Fi client signal health and internet quality, putting an end to common, unnecessary support calls. Time consuming tasks like RF troubleshooting and bulk software upgrades are a breeze, and installation is a simple, speedy job.
The 5Ghz priority feature improves wireless network performance, and with 1 year extended warranty you won’t have to worry about your customer’s WiFi needs.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL-WCAP-AX |
| Our part no. | CI87891 |
| Category | Networking › Wireless Access Points |
| Weight | 0 kg |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1800 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 100 user(s) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 256-QAM |
| Fit AP mode features | 802.11k & 802.11v smart roaming, AC unified management & maintenance |
| Fast roaming | Yes |
| WLAN channel features | WLAN channel management |
| VLAN support | Yes |
| Rate limiting | Yes |
| User-based bandwidth limiting | Yes |
| Automatic interference avoidance | Yes |
| Wireless isolation | Yes |
| Load balancing | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| Maximum indoor range | 200 m |
| Transmitting power (CE) | 20 dBm |
| Security | |
| Security algorithms | WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 8 |
| Management features | |
| Web-based management | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Output voltage | 48 V |
| Power consumption (max) | 15 W |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Housing material | Plastic |
| Reset button | Yes |
| LED indicators | LAN, Power, WAN |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 4 dBi |
| Polarization | Dual polarization |
| Performance | |
| Built-in processor | Yes |
| Processor manufacturer | MediaTek |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Certificates | |
| Certification | CE, RoHS |
| Weight & dimensions | |
| Width | 168 mm |
| Depth | 168 mm |
| Height | 32 mm |
| Weight | 430 g |
| Packaging data | |
| Package width | 245 mm |
| Package depth | 235 mm |
| Package height | 80 mm |
| Package weight | 710 g |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| PoE adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Warranty period | 1 year(s) |
