Description

SilverNet SIL-WCAP-AX-EXT+, 2.4 GHz, 5 GHz, 1800 Mbit/s, WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-PSK,..., 10,100,1000 Mbit/s

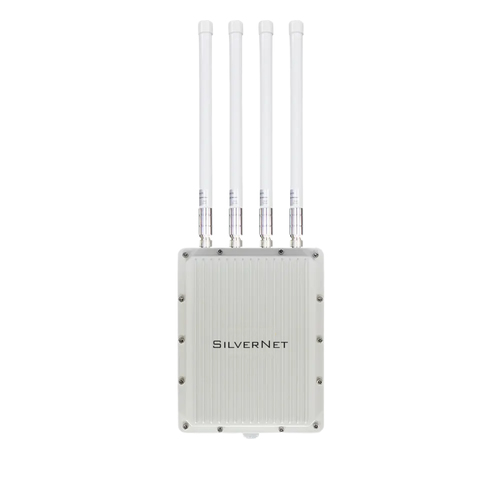

The SIL WCAP-AX-EXT+ is an outdoor 802.11ax access point featuring four N-type antenna connectors. It is part of SilverNet's new Intelligent Wi-Fi 6 "Aero" series, designed for use with external high-gain antennas to create high-performance enterprise Wi-Fi networks.

This device offers an exceptional outdoor Wi-Fi range with a TX-Power of up to 23dBm and a wireless coverage distance of up to 200 meters (depending on the antennas used), making it perfect for a wide range of uses, especially in commercial and hospitality settings. It supports various hotspot authentication methods, including vouchers, local accounts, and social media platforms like Facebook, ensuring robust connectivity in shopping centers, schools, hotels, and more.

The WCAP-AX-EXT+ provides the option to manage the access point locally or through a controller, offering the versatility to deliver a comprehensive, managed Wi-Fi service tailored to your clients' requirements. It also operates efficiently as a standalone access point.

This equipment keeps operations smooth for you and your clients by monitoring Wi-Fi client signal health and internet quality, reducing the frequency of unnecessary support calls. Tasks such as RF troubleshooting and bulk software updates are simplified, and installation is quick and straightforward.

The durable exterior of the WCAP-AX-EXT+ shields the device and its components from interference and harsh weather conditions. With a standard one-year warranty, you can have peace of mind regarding its reliability.

Specifications

BrandSILVERNET
Manufacturer part no.SIL-WCAP-AX-EXT+
Our part no.CI87892
CategoryNetworking › Wireless Access Points
Weight0 kg
Features
2.4 GHzYes
5 GHzYes
Maximum data transfer rate1800 Mbit/s
Maximum data transfer rate (2.4 GHz)600 Mbit/s
Maximum data transfer rate (5 GHz)1200 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af
Cabling technology10/100/1000Base-T(X)
Number of users100 user(s)
Rate limitingYes
User-based bandwidth limitingYes
Automatic interference avoidanceYes
Wireless isolationYes
Band steeringYes
Quality of Service (QoS) supportYes
Maximum outdoor range200 m
Transmitting power (CE)23 dBm
Security
Security algorithmsWEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-TKIP
MAC address filteringYes
Service Set Identifier (SSID) featuresMultiple SSIDs
Number of SSID supported8
Management features
Web-based managementYes
Firmware upgradeableYes
Ports & interfaces
WAN connectionEthernet (RJ-45)
Power
Power over Ethernet (PoE)Yes
Output voltage48 V
Power consumption (max)15 W
Design
PlacementPole, Wall
Product colourWhite
International Protection (IP) codeIP65
Reset buttonYes
LED indicatorsLAN, Power, WAN
Antenna
Antenna typeExternal
Number of connectors4
Performance
Built-in processorYes
Flash memory128 MB
Internal memory512 MB
Certificates
CertificationCE, RoHS
Weight & dimensions
Width231 mm
Depth295 mm
Height80 mm
Packaging data
Package width285 mm
Package depth455 mm
Package height125 mm
Package weight3.33 kg
Package typeBox
Packaging content
Quantity per pack1 pc(s)
PoE adapter includedYes
Mounting kitYes
Quick start guideYes
Operational conditions
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-30 - 70 °C
Storage temperature (T-T)-40 - 70 °C
Logistics data
UK Trade Tariff code85176200
Warranty period1 year(s)
