Description

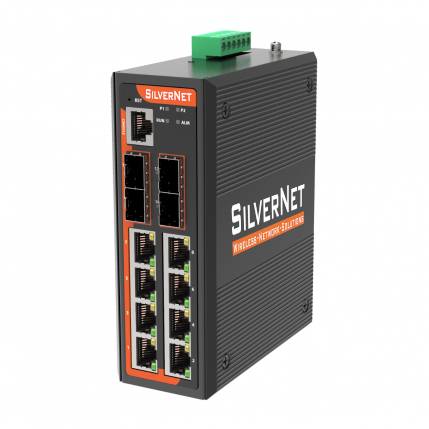

SilverNet SIL 73408MP-10G, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex
Long-lasting and durable, the SilverNet 73408MP-10G is a fully managed Layer 3 switch, designed for deployment in harsh industrial environments.
Featuring 8 x 10/100/1000Base-T ports and 4 x SFP+ 10Gb ports, this Switch provides ample connectivity options for a range of uses.
The Industrial Gigabit PoE+ Managed Switch boasts a dual input design, low power consumption, and high reliability. Additionally, it’s fanless, which ensures quiet operation making it ideal for noise-sensitive environments.
The 73408MP-10G is a dependable solution for extending Ethernet over long distances using fibre daisy chaining.
This will simplify installation and reduce costs, as it eliminates the need for separate power supplies for IP video cameras and wireless access points.
Even in challenging environments and weather conditions, this rugged Switch can be relied upon. It features an extended temperature range, enabling it to operate reliably in unconditioned outdoor cabinets and other harsh industrial environments.
Fully compliant with the IEEE802.3af/at standard, the SilverNet Industrial Gigabit PoE+ Managed Switch provides power over Ethernet through twisted pair cables. Its fibre optic ports are equipped with modular SFP+ slots that support any MSA-compliant pluggable 10Gbps SFP+ transceiver.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL 73408MP-10G |
| Our part no. | CI87900 |
| Category | Networking › Switches |
| Weight | 0 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | Ethernet-like MIB, MIB-II, MIB-I, Bridge MIB, Bridge MIB extensions, RMON MIB(1,2,3 & 9 groups, RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 4 |
| Installed SFP+ modules quantity | 4 |
| Console port | RJ-45 |

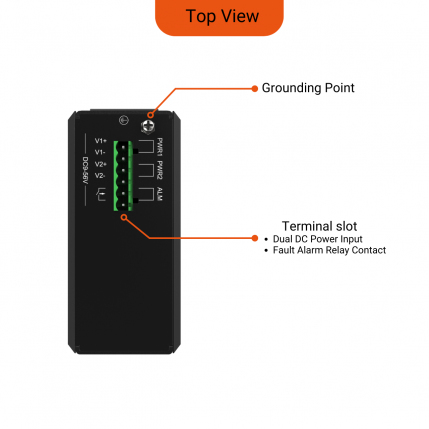

| Power connector | Terminal block (2-pin) |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| Active link detection | Yes |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Stacked VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| Number of VLANs | 256 |
| Data transmission | |
| Switching capacity | 128 Gbit/s |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Latency (10-100 Mbps) | 7 µs |
| Latency (1 Gbps) | 7 µs |
| Latency (10 Gbps) | 7 µs |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 12 MB |
| Security | |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| IGMP entries | 4096 |
| Security algorithms | 802.1x RADIUS, HTTPS, SSL/TLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Password protection | Yes |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| Queue scheduling algorithms | Priority queuing (PQ), Strict Priority Queue (SPQ), WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | ARP, Flow Control, DDM, DHCP Server/Client, IPv4/IPv6, LLDP, LLDP-MED, UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPFv2, RIP-1, RIP-2, VRRP |
| Design | |
| Rack mounting | No |
| Stackable | Yes |
| Housing material | Aluminium |
| LED indicators | Alarm, Link, Power, Ring, Speed |
| International Protection (IP) code | IP40 |
| Electromagnetic compatibility | FCC Part15 Class A, CE-EMC/LVD, RoHS, EN61000-4-2 (ESD):LEVEL 4, IEC 6100-4-2 (EFT):LEVEL 4, IEC 6100-4-2 (Surge): LEVEL 4, IEC 6100-4-2 (CS)：LEVEL 3, IEC 61000-4-2(PFMP) : LEVEL 5, EN61000-4-3 (RS):LEVEL 4 |
| Performance | |
| Mean time between failures (MTBF) | 250000 h |
| Power | |
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| AC input voltage | 110 - 240 V |
| DC input voltage | 9 - 56 V |
| Power consumption (max) | 16 W |
| Power protection features | Over current, Reverse polarity |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 34 BTU/h |
| Weight & dimensions | |
| Width | 138 mm |
| Depth | 108 mm |
| Height | 49 mm |
| Weight | 680 g |
| Packaging data | |
| Package type | Box |
| Package width | 170 mm |
| Package depth | 230 mm |
| Package height | 80 mm |
| Package weight | 945 g |
| Certificates | |
| Certification | IEC60068-2-27 IEC60068-2-6 IEC60068-2-31 EN 60950-1 UL 60950-1 CSA C22.2 No.60950-1 UL 508 |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
