Description
SilverNet SIL 734C24MP, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 19U
The SIL 734C24MP is a top-tier Industrial Managed Ethernet Switch for industrial Ethernet networks. Developed and built to industry-leading technical standards, it ensures stable and reliable Ethernet transmission with superior quality you can depend on.

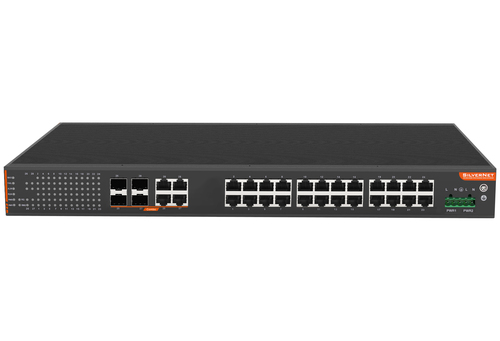

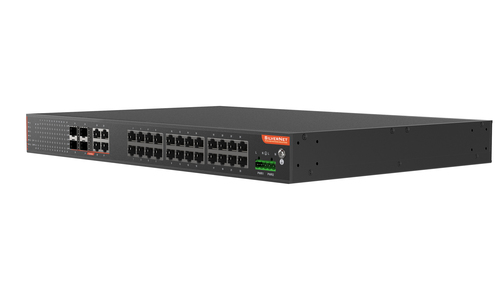

Housed in rack-mountable, strong aluminium casing, this Switch boasts a total of 24 Ethernet ports. On top of that, it also has 4 additional Gigabit SFP ports for data uplink and backbone connectivity.
Perfectly equipped to meet infrastructure requirements of a high-density PoE/PoE+ supply it is able to supply power to PD terminal equipment, like wireless APs, webcams, VoIP devices, and visual intelligent building intercoms through network cable.
The advanced technology and open network standards employed by this Switch allow it to function efficiently in all sorts of demanding environments. It can withstand extreme temperature ranges, resist electromagnetic interference, salt fog, vibrations, and shaking. This Switch is specifically designed for challenging environments, e.g. industrial networking and intelligent transportation systems (ITS), and feature standard IP40 protection. Even where environmental conditions exceed commercial product specifications, like in military and utility sectors, this Switch can be relied upon for long-lasting high-performance.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL 734C24MP |
| Our part no. | CI87902 |
| Category | Networking › Switches |
| Weight | 0 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| SFP module slots quantity | 4 |
| Power connector | Terminal block (6-pin) |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multiple VXLAN (MUX VLAN), Port-based VLAN, Tagged VLAN |
| Number of VLANs | 256 |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000Base-X |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| MAC address table | 8000 entries |
| Latency (10-100 Mbps) | 7 µs |
| Latency (1 Gbps) | 7 µs |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4 MB |
| Security | |
| DHCP features | DHCP client, DHCP server, DHCPv6 client, DHCPv6 server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMPv3, SSH-2, SSL/TLS |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Password protection | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| MAC address entries | Blackhole MAC address entries, Static MAC address entries |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 19U |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Alarm, LAN, Link, Power, Ring |
| International Protection (IP) code | IP40 |
| Electromagnetic compatibility | EN55032 Class A, CISPR 32 FCC Part 15B Class A, EN61000 4 2 (ESD) EN61000 4 3 (RS) EN61000 4 4 (EFT) EN61000 4 5 (Surge) EN61000 4 6 (CS) EN61000 4 8 (PFMF) |
| Performance | |
| Noise level | 0 dB |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 250000 h |
| Power | |
| Power source | DC |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| DC input voltage | 9 - 56 V |
| Power consumption (max) | 24 W |
| Power protection features | Overload, Reverse polarity |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 720 W |
| Other features | |
| Warranty period | 5 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 400 mm |
| Depth | 300 mm |
| Height | 45 mm |
| Weight | 2.6 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 393 mm |
| Package depth | 495 mm |
| Package height | 80 mm |
| Package weight | 3.24 kg |
| Certificates | |
| Certification | IEC/EN 62368-1 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 RoHS |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
