Description

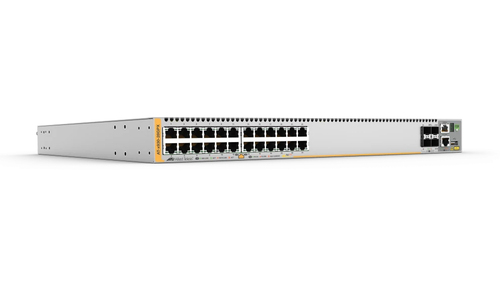

Allied Telesis x930-28GPX, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
The Allied Telesis x930-28GPX features 24 Gigabit ports with 4 10 Gigabit uplinks, and dual hot-swap power supplies for a fully resilient solution. Long-distance stacking of up to 8 units supports distributed environments, and Power over Ethernet provides the full 30 watts of PoE+ on all ports supporting today’s high-power devices.
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-X930-28GPX-B05 |
| Our part no. | CI96441 |
| Category | Networking › Managed Switches |
| Weight | 7.3 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-TX |
| Port mirroring | Yes |
| Full duplex | Yes |
| Routing entries | 2000 |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Data transmission | |
| Switching capacity | 2.88 Gbit/s |
| Throughput | 214.3 Mpps |
| MAC address table | 64000 entries |
| Latency (1 Gbps) | 3.6 µs |
| Latency (10 Gbps) | 2.6 µs |
| Security | |
| DHCP features | DHCP client, DHCP server |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
| Multicast features | |
| Multicast support | Yes |
| Multicast MAC address table | 2000 entries |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| Performance | |
| Noise level | 56 dB |
| Firmware upgradeable | Yes |
| Power | |
| Power source | AC/DC |
| Power supply included | Yes |
| AC input voltage | 90 - 260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 84 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 301 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 420 mm |
| Height | 44 mm |
| Weight | 5.1 kg |
