Description

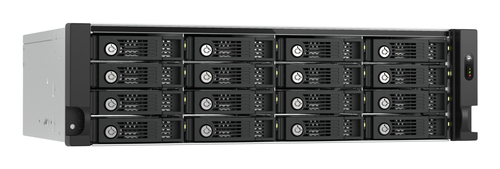

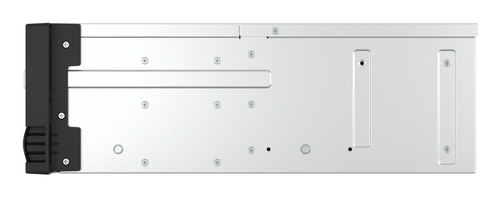

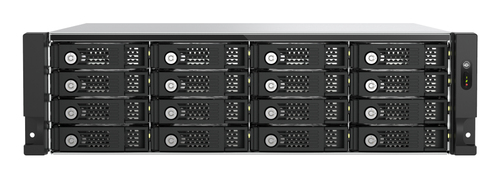

QNAP TL-R1600PES-RP, HDD/SSD enclosure, 2.5/3.5", Serial ATA, 6 Gbit/s, Hot-swap, Black, Grey
TL-R1600PES-RP PCIe Interface 16-bay JBOD, supporting SATA drives, for petabyte-scale expansion designed specifically for QNAP NAS
The TL-R1600PES-RP TL PCIe interface JBOD storage enclosure allows you to expand the storage capacity of a QuTS hero or QTS NAS by using SATA hard drives. Providing large data capacity and fast transfer speed, the TL-R1600PES-RP is the ideal solution for archiving/backing up virtualization applications, surveillance recordings, large data, and multimedia.
QNAP enterprise NAS with petabyte-class storage Use QNAP enterprise and all-flash QuTS hero NAS paired with multiple TL-R1600PES-RP JBODs, to obtain both breakthrough performance and massive capacity. The TL-R1600PES-RP supports SATA hard drives, providing greater choice in selecting high-capacity drives. This configuration is ideal for enterprises, science research institutions, and media production companies that require high-capacity storage for backing up or storing virtual machines, containers, and what is produced/generated by their high-performance NAS.
Specifications
| Brand | QNAP |
|---|---|
| Manufacturer part no. | TL-R1600PES-RP |
| Our part no. | CJ09242 |
| EAN | 4711103083215 |
| Category | Storage Systems › Other (0281) |
| Weight | 16.7 kg |
| Storage | |
| Number of storage drives supported | 16 |
| Storage drive size | 2.5/3.5" |
| Supported storage drive interfaces | Serial ATA |
| Hot-swap | Yes |
| Design | |
| Product type | HDD/SSD enclosure |
| Product colour | Black, Grey |
| LED indicators | Fan fail, HDD, Link |
| On/off switch | Yes |
| Rack mounting | Yes |
| Rack capacity | 2U |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm |
| Performance | |
| Data transfer rate | 6 Gbit/s |
| Power | |
| Power source type | AC |
| External power adapter | Yes |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
| Power consumption (max) | 550 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 482.2 mm |
| Depth | 425.3 mm |
| Height | 131.3 mm |
| Weight | 11.6 kg |
| Package width | 595 mm |
| Package depth | 593 mm |
| Package height | 305 mm |
| Package weight | 16.6 kg |
| Packaging content | |
| Package type | Box |
| Technical details | |
| Warranty period | 5 year(s) |
