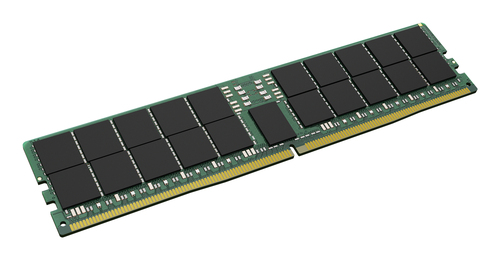

Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96 GB DDR5 5600 MT/s 288-pin DIMM ECC

Description

Kingston Technology KSM56R46BD4PMI-96MBI, 96 GB, 1 x 96 GB, DDR5, 288-pin DIMM

Kingston's KSM56R46BD4PMI-96MBI is a 12G x 80-bit (96GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Specifications

BrandKINGSTON
Manufacturer part no.KSM56R46BD4PMI-96MBI
Our part no.CJ34781
EAN0740617340266
CategoryComponents & Memory › Memory (RAM)
Weight0 kg
Features
On-Die ECCYes
CAS latency46
Internal memory96 GB
Memory layout (modules x size)1 x 96 GB
Internal memory typeDDR5
Memory data transfer rate5600 MT/s
Component forPC/Server
Memory form factor288-pin DIMM
ECCYes
Buffered memory typeRegistered (buffered)
Memory ranking2
Memory voltage1.1 V
Module configuration12288M x 80
Row cycle time48 ns
Refresh row cycle time295 ns
Row active time32 ns
SPD profileYes
Programming power voltage (VPP)1.8 V
Lead platingGold
BacklightNo
JEDEC standardYes
Operational conditions
Operating temperature (T-T)0 - 95 °C
Storage temperature (T-T)-55 - 100 °C
Sustainability
Sustainability complianceYes
Compliance certificatesRoHS
Weight & dimensions
Width133.3 mm
Height31.2 mm
Other features
Doesn't containHalogen
