Description
Manhattan Wall Mount for TV & Monitors (Full Motion), For screens 32" to 65", VESA compatibility: all between 100x100mm to 600x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 35kg, Black, Bracket, Lifetime Warranty, 100 x 100 mm, 600 x 400 mm, -15 - 5°, -60 - 60°, Steel, Black

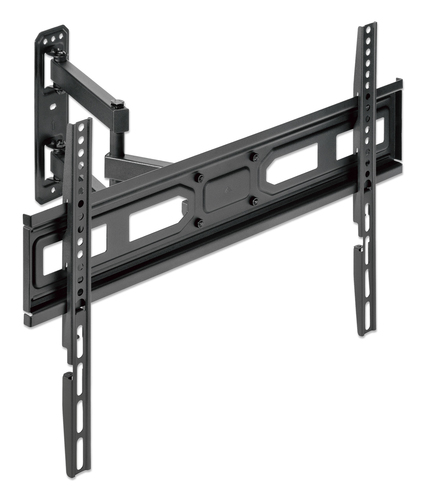

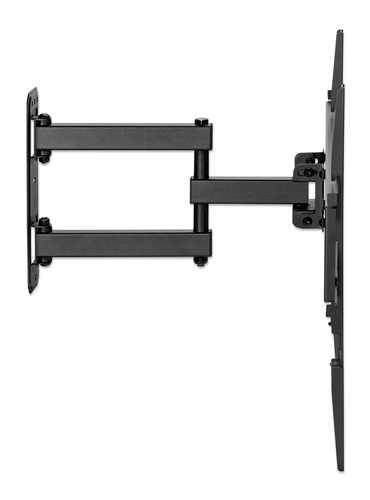

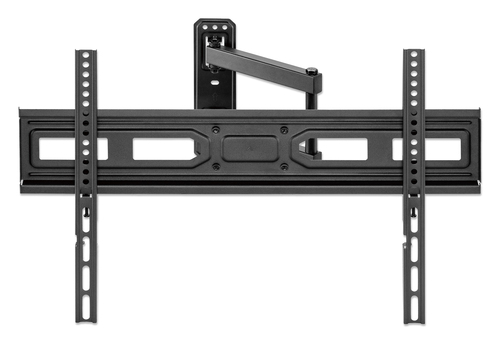

Articulating TV Wall Bracket – fully adjustable mounting bracket to fit almost any space This strong full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and provides optimized views with +3 to -15° tilt and +/-60° swivel adjustment. It fits flat and curved LCD, OLED or plasma TVs up to 70"" and weighing up to 35 kg (77lbs.) with VESA compliance up to 600x400. You're all set for a confident above-the-floor installation with an included bubble level and +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classrooms, conference rooms, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.
Specifications
| Brand | MANHATTAN |
|---|---|
| Manufacturer part no. | 462426 |
| Our part no. | CJ40271 |
| EAN | 0766623462426 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 3 kg |
| Mounting | |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 94 cm (37") |
| Number of displays supported | 1 |
| Maximum screen size | 177.8 cm (70") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400 |
| Mounting type | Wall |
| Ergonomics | |
| Adjustable depth | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 5° |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Built-in spirit level | Yes |
| Distance to the wall (max) | 35.8 cm |
| Distance to the wall (min) | 6.3 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Packaging content | Full-Motion TV Wall Mount with Post-Leveling Adjustment Attachable bubble level Installation hardware with instructions |
| Weight & dimensions | |
| Width | 640 mm |
| Depth (max) | 35.8 cm |
| Height | 420 mm |
| Weight | 2.52 kg |
| Packaging data | |
| Package width | 645 mm |
| Package depth | 62 mm |
| Package height | 250 mm |
| Package weight | 3.02 kg |
| Logistics data | |
| Master (outer) case width | 660 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 205 mm |
| Master (outer) case gross weight | 19.8 kg |
| Products per master (outer) case | 6 pc(s) |
