Description

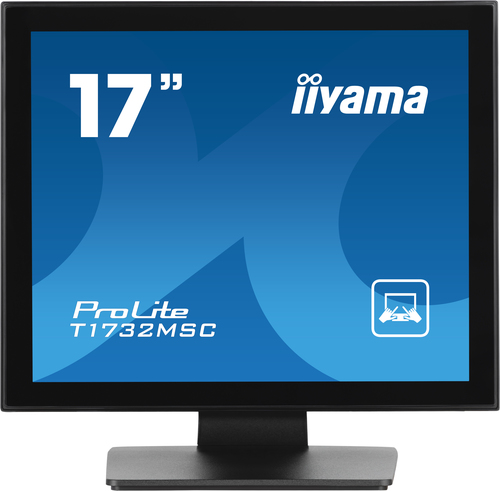

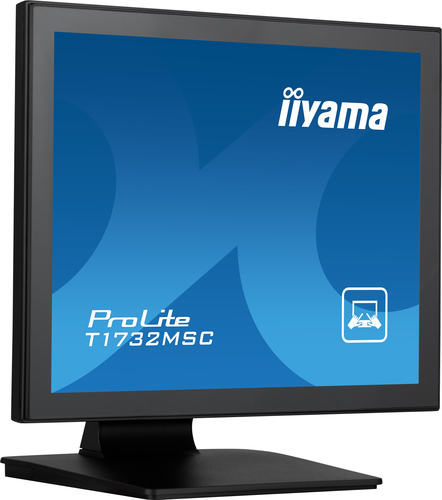

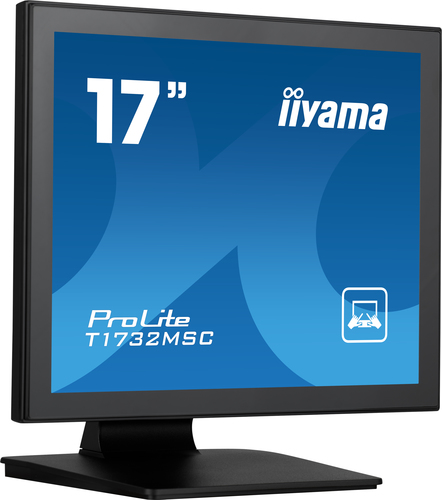

iiyama ProLite T1732MSC-B1SAG, 43.2 cm (17"), 1280 x 1024 pixels, Full HD, LED, 5 ms, Black

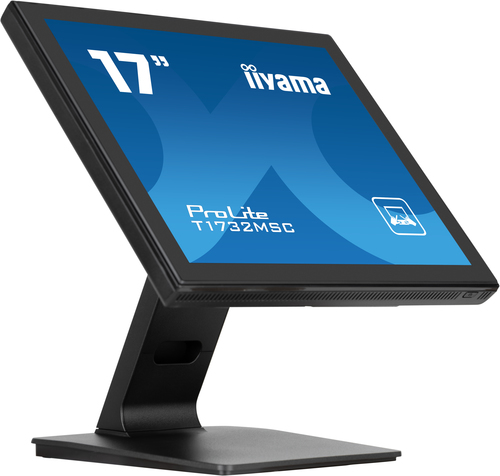

The ProLite T1732MSC-B1SAG 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
Specifications
| Brand | IIYAMA |
|---|---|
| Manufacturer part no. | T1732MSC-B1SAG |
| Our part no. | CJ59282 |
| EAN | 4948570122158 |
| Category | Monitors & Displays › Other (0352) |
| Weight | 6.6 kg |
| Display | |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| HD type | Full HD |
| Native aspect ratio | 5:4 |
| Display technology | LED |
| Panel type | TN |
| Backlight type | LED |
| Touchscreen | Yes |
| Touchscreen type | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 215 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Display brightness | 215 cd/m² |
| Response time | 5 ms |
| Display surface | Matt |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31 - 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27.1 cm |
| Display diagonal (metric) | 43 cm |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |
| Glass thickness | 1.2 mm |
| Ports & interfaces | |
| Built-in USB hub | No |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Headphone outputs | 1 |
| HDCP | Yes |
| DC-in jack | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Tilt angle range | 5 - 90° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 11.9 kWh |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Width (with stand) | 387 mm |
| Depth (with stand) | 240 mm |
| Height (with stand) | 378 mm |
| Weight (with stand) | 4.9 kg |
| Packaging content | |
| Stand included | Yes |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Other features | |
| International Protection (IP) code | IP54 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| User controls | contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
| Brightness | 215 cd/m² |
| Active display area (W x H) | 338 x 270.5 mm |
| Touch method | stylus, finger, glove (latex) |
| Weight | 4.9 kg |
| Height | 378 mm |
| Width | 387 mm |
| Depth | 240 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
