Description

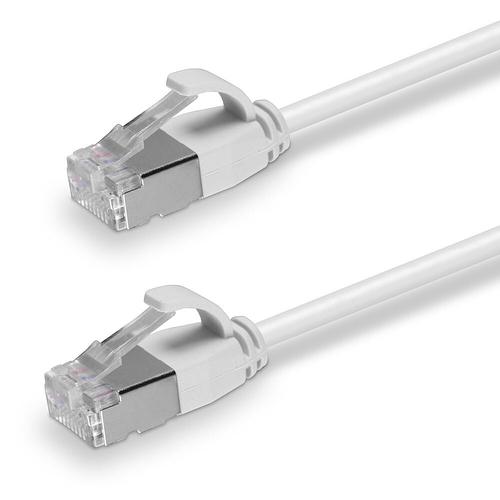

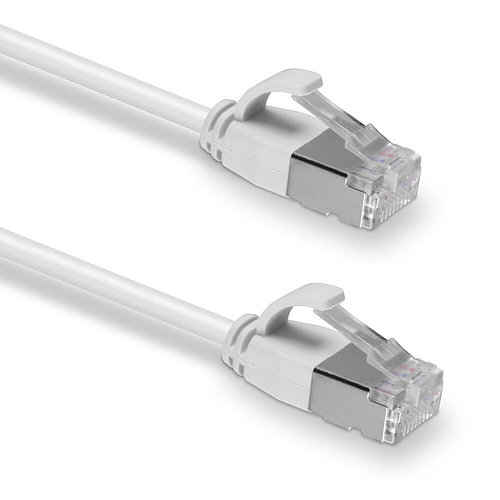

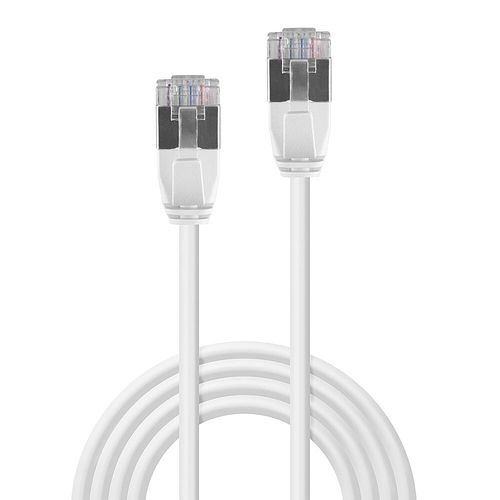

Lindy 5m Cat.6A U/FTP Ultra Slim Network Cable, Grey, 5 m, Cat6a, U/FTP (STP), RJ-45, RJ-45, Grey

Cat.6A U/FTP Ultra slim network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T. Cat 6A cable, for operating frequencies up to 500MHz, shielded with foil shielded with single pair shielding (U/FTP). Designed as an ultra slim cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The very flexible and thin cable construction allows the cables to be installed in restricted or limited spaces such as server rooms or network hubs. Available lengths: 0.3m, 1m, 1.5m, 2m, 3m, 5m.

Specifications

BrandLINDY
Manufacturer part no.47596
Our part no.CJ61842
EAN4002888475969
CategoryCables & Adapters › Network Cables
Weight0 kg
Features
Product colourGrey
Cable length5 m
Cable standardCat6a
Cable shieldingU/FTP (STP)
Connector 1RJ-45
Connector 2RJ-45
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingNickel/Gold
Connector shieldingYes
Connector shield materialAluminium
Jacket materialLow smoke zero halogen (LSZH)
Cable shapeRound
Conductor materialCopper
AWG wire size30
Frequency500 MHz
Bend radius (min)6 cm
Nominal attenuation49.3dB/100m @ 500MHz
Operational conditions
Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-10 - 40 °C
Sustainability
Sustainability certificatesUL ECOLOGO
Certificates
Compliance certificatesREACH, RoHS
CertificationRoHS, REACH, California Proposition 65
Weight & dimensions
Width11 mm
Depth28 mm
Height6 mm
Outer diameter3.6 mm
Connector 1 dimensions (WxDxH)11 x 28 x 6 mm
Connector 2 dimensions (WxDxH)11 x 28 x 6 mm
Packaging content
Quantity per pack1 pc(s)
Packaging data
Package typePolybag
Technical details
Sustainability complianceYes
