Description

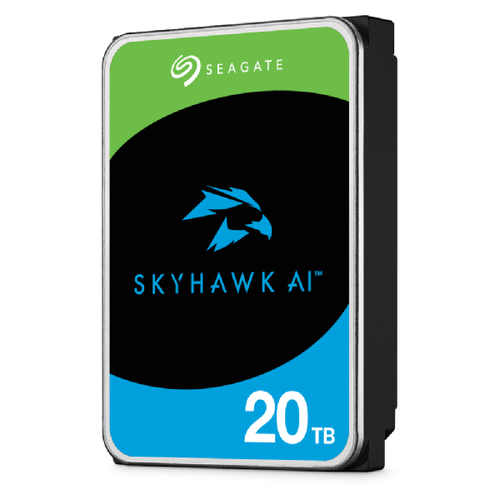

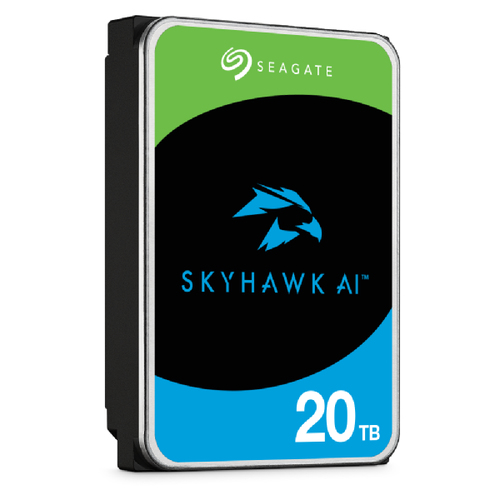

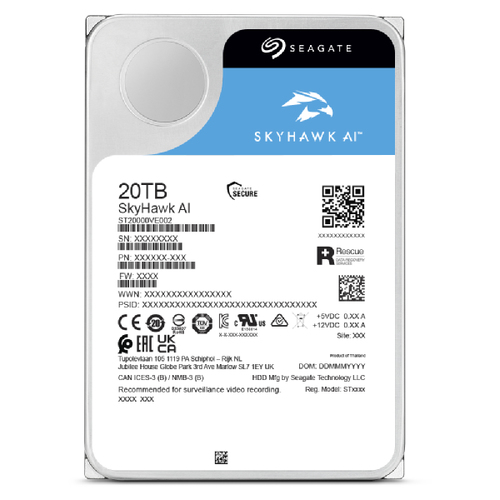

Seagate SkyHawk AI, 20 TB, 7200 RPM, 512 MB, 3.5", Serial ATA III
A video-optimised drive, SkyHawk AI is designed for NVRs with artificial intelligence for edge applications.
SkyHawk AI Designed for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.
SkyHawk 24×7 workloads can leverage up to 8 TB with drives designed for DVR and NVR systems. SkyHawk video drives are equipped with enhanced ImagePerfect™ and SkyHawk Health Management to help you sail through your toughest challenges.
Drive Health and Data Recovery When integrated into compatible NVR systems, these drives provide overall system reliability increases due to SkyHawk Health Management (SHM).1
In addition, the SkyHawk drives include a robust three-year Rescue Data Recovery Services plan.
Specifications
| Brand | SEAGATE |
|---|---|
| Manufacturer part no. | ST20000VE003 |
| Our part no. | CJ64902 |
| EAN | 0763649181898 |
| Category | Hard Drives & SSDs › Hard Drives |
| Weight | 0.7 kg |
| Features | |
| HDD capacity | 20 TB |
| HDD speed | 7200 RPM |
| Storage drive buffer size | 512 MB |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Type | HDD |
| Component for | Surveillance system |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 260 MiB/s |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Rotational Vibration (RV) sensors | Yes |
| Number of AI channels | 32 |
| Start/stop cycles | 600000 |
| Mean time between failures (MTBF) | 2000000 h |
| Power | |
| Power consumption (typical) | 7.72 W |
| Power consumption (standby) | 1 W |
| Power consumption (idle) | 3.5 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 65 °C |
| Weight & dimensions | |
| Width | 101.8 mm |
| Height | 26.1 mm |
| Depth | 147 mm |
| Weight | 680 g |
| Logistics data | |
| Products per pallet layer | 8 pc(s) |
| Harmonized System (HS) code | 84717050 |
| Master (outer) cases per pallet | 40 pc(s) |
| Products per master (outer) case | 20 pc(s) |
| Other features | |
| Maximum number of cameras supported | 64 |
