Description

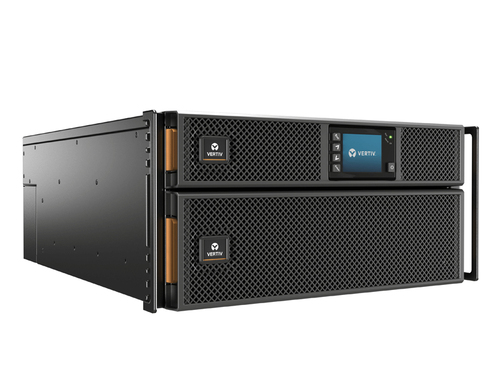

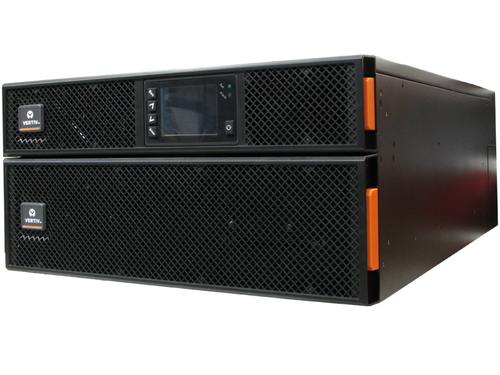

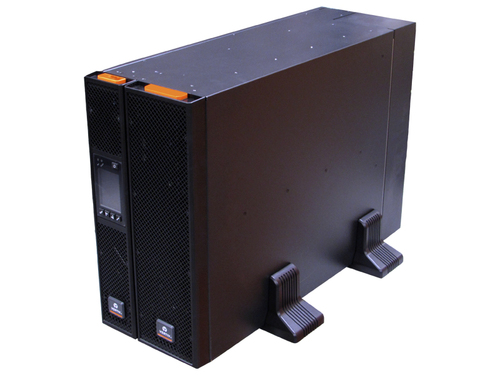

Vertiv Liebert GXT5 Double Online Conversion UPS -8000VA/8000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-8000IRT5UXLN, Double-conversion (Online), 8 kVA, 8000 W, Pure sine, 176 V, 288 V

The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 8kVA/8kW online double conversion UPS offers continuous power conditioning in centralized and edge locations. With unity power factor (1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 230V in and 230V out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.

Specifications

BrandVERTIV
Manufacturer part no.GXT5-8000IRT5UXLN
Our part no.CJ64970
EAN0767041026672
CategoryPower & UPS › UPS
Weight96 kg
Features
UPS topologyDouble-conversion (Online)
Output power capacity8 kVA
Output power8000 W
WaveformPure sine
Input operation voltage (min)176 V
Input operation voltage (max)288 V
Input frequency40 - 70 Hz
Output operation voltage (min)230 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Output voltage regulation3%
Response time0 ms
Number of input phases1
Number of output phases1
Efficiency94.5%
Power factor1
Input power factor0.99
Output power factor1
Emergency Power Off (EPO)Yes
Noise level55 dB
Power protection featuresOverload
Audible alarm(s)Yes
Ports & interfaces
AC outlet typesC13 coupler, C19 coupler, IEC 320, Terminal
Power plugTerminal
AC outlets quantity8 AC outlet(s)
USB portYes
Serial interfaceYes
Battery
Typical backup time at full load3.5 min
Typical backup time at half load9.5 min
Hot-swap batteryYes
Design
Form factorRackmount/Tower
Rack capacity5U
Cooling typeActive
Product colourBlack
Display typeLCD
International Protection (IP) codeIP20
Certificates
Compliance certificatesRoHS
CertificationCE, EMI/EMC/C-Tick EMC, ESD
Packaging content
Cables includedUSB cable
Safety regulation & standards
SafetyIEC62040-1:2008
Weight & dimensions
Width430 mm
Depth630 mm
Height217 mm
Weight74.5 kg
Logistics data
Country of originChina
