Description

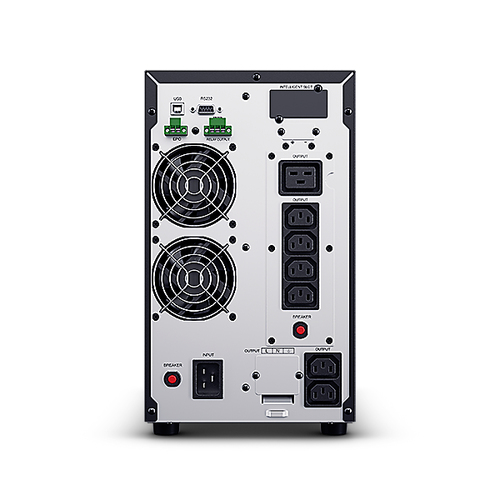

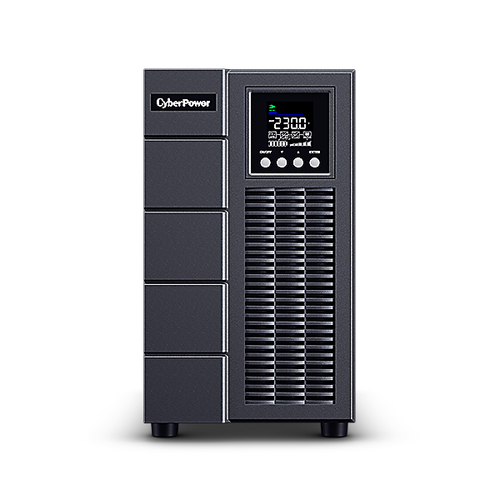

CyberPower OLS3000EA, Double-conversion (Online), 3 kVA, 2700 W, Pure sine, 190 V, 300 V
CyberPower OLS3000EA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
The UPS is designed with color LCD panel for users to monitor power system and configure settings easily. This model is generator compatible and also adopts ECO mode to conserve power. The product can be connected to Emergency Power Off (EPO) switch, which allows users to shut off UPS immediately during emergency. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.
Specifications
| Brand | CYBERPOWER |
|---|---|
| Manufacturer part no. | OLS3000EA |
| Our part no. | CJ75952 |
| EAN | 4711027790121 |
| Category | Power & UPS › UPS |
| Weight | 27.4 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 190 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Maximum current | 13.04 A |
| Surge energy rating | 370 J |
| Response time | 0 ms |
| Number of input phases | 1 |
| Efficiency (ECO mode) | 95% |
| Power factor | 0.9 |
| Input power factor | 0.98 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Power protection features | Input fuse, Over current, Overload, Short circuit |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler, Terminal |
| Power plug | C20 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 3 |
| Typical backup time at full load | 4.3 min |
| Typical backup time at half load | 13.1 min |
| Battery recharge time | 4 h |
| Charging current | 1.5 A |
| Replacement battery cartridge | BPSE72V40A |
| Design | |
| Form factor | Tower |
| Housing material | Metal |
| Cable length | 1.5 m |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 1500 m |
| Non-operating altitude | 0 - 1500 m |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 169 mm |
| Depth | 416 mm |
| Height | 337 mm |
| Weight | 26 kg |
| Packaging data | |
| Package width | 295 mm |
| Package depth | 519 mm |
| Package height | 458 mm |
| Package weight | 30.4 kg |
| Logistics data | |
| Harmonized System (HS) code | 8504408590 |
| Country of origin | China |
