Description

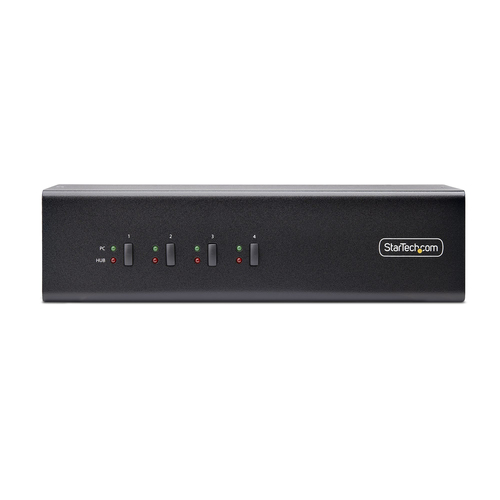

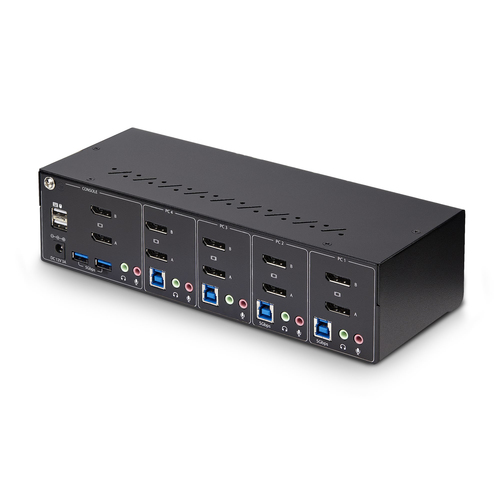

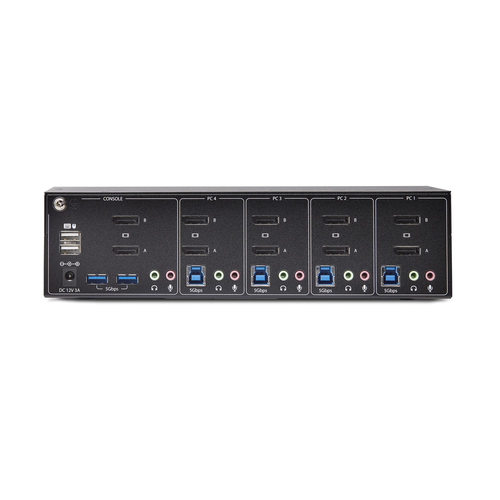

StarTech.com 4-Port Dual-Monitor DisplayPort KVM Switch, 4K 60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey and Push-Button Switching, TAA Compliant - 3.5mm Audio, HDCP, 3840 x 2160 pixels, 4K Ultra HD, Black
Share a mouse, keyboard, USB 5Gbps hub, and dual 4K 60Hz DisplayPort displays between four DisplayPort-enabled computers
This Dual-Monitor KVM Switch enables users to switch between four desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 5Gbps devices.
Fast Switching with USB Emulation
USB Emulation technology enables faster switching of a keyboard, video, and mouse compared to traditional KVMs. USB Emulation also ensures compatibility with combination keyboards/mice as well as keyboards featuring additional function keys.
Dual-4K 60Hz Displays & USB 5Gbps Hub Ports
This TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. Additionally, it offers two USB 3.2 Gen 1 (5Gbps) Hub Ports for fast data transfer, and two USB 2.0 HID Ports for the keyboard and mouse. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection.
Customizable Switching
This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of USB/Video and Audio, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts. • MAC Address Pass-Through Utility: Improve network security. • USB Event Monitoring Utility: Track and log connected USB devices. • Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | P4DD46A2-KVM-SWITCH |
| Our part no. | CJ78112 |
| EAN | 0065030899697 |
| Category | Networking › Other (0406) |
| Weight | 1.5 kg |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 8 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort |
| Console DisplayPorts ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 5 |
| Number of microphone inputs | 5 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 5 Gbit/s |
| Scan interval | 10,20,30,40,50,60 s |
| HDCP | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 103062 h |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power | |
| Power source | DC |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| External power adapter | Yes |
| Compatible power plug types | EU, JP, UK, US |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 253 mm |
| Height | 66 mm |
| Weight | 1.2 kg |
| Packaging data | |
| Package width | 162 mm |
| Package depth | 332 mm |
| Package height | 129 mm |
| Package weight | 1.4 kg |
| Packaging content | |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Master (outer) case width | 352 mm |
| Master (outer) case length | 513 mm |
| Master (outer) case height | 301 mm |
| Products per master (outer) case | 6 pc(s) |
