Description

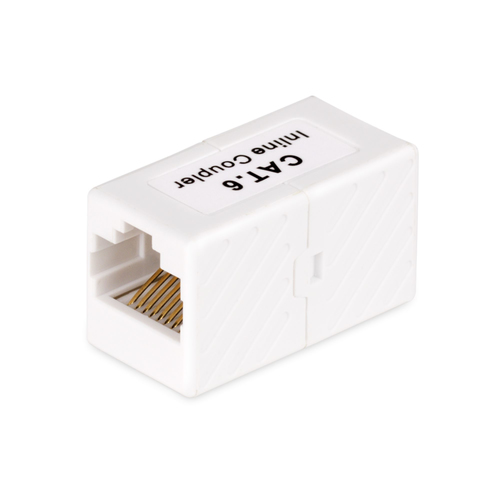

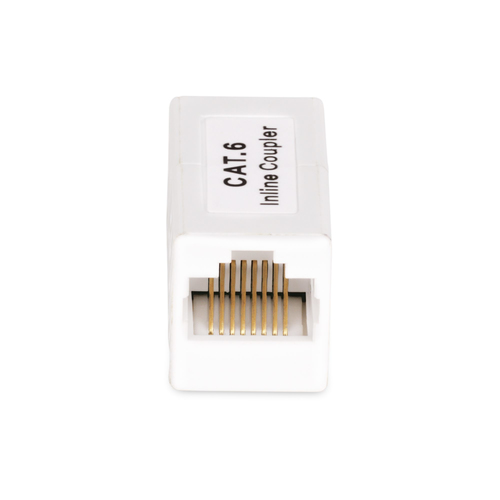

StarTech.com RJ45 Coupler, Inline Cat6 Coupler, Female to Female (F/F) T568B Connector, Unshielded Ethernet Cable Extension, RJ-45, RJ-45, White

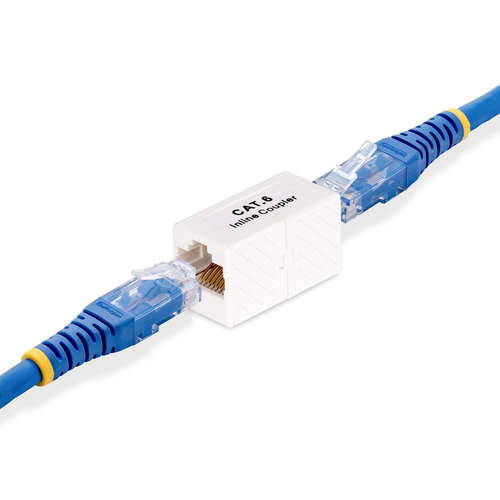

Join two standard RJ45 Cat6 cables using this Inline Coupler
Connect two Cat 6 cables to extend a network connection using this RJ45 Inline Coupler. The female to female Ethernet coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Wide Compatibility
The Cat6 Coupler facilitates 10Gbps, 1Gbps, and 10/100 speeds and is compatible with common networking standards including 10/100/1000BASE-T, and advanced protocols such as 2.5GBASE-T/5GBASE-T
Durable Construction
The RJ45 Coupler features a durable polycarbonate housing and gold-plated phosphor bronze RJ45 contacts for dependable, long-lasting performance and reliability.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | IN-CAT6-COUPLER-U1 |
| Our part no. | CJ78118 |
| EAN | 0065030906142 |
| Category | Cables & Adapters › Cable Management |
| Weight | 0 kg |
| Ports & interfaces | |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Female |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Performance | |
| Product colour | White |
| Housing material | Polycarbonate (PC) |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Data transfer rate | 10 Gbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ae, IEEE 802.3bz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Relative humidity | 15 - 65% |
| Certificates | |
| Compliance certificates | CE |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 15 mm |
| Height | 17 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 91 mm |
| Package depth | 55 mm |
| Package height | 19 mm |
| Package weight | 104 g |
| Logistics data | |
| Products per master (outer) case | 1000 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 270 mm |
