Description

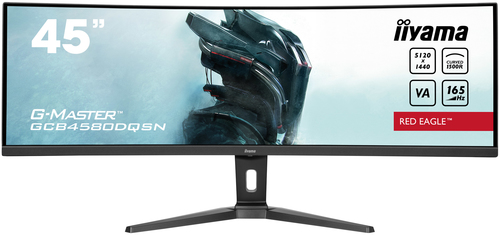

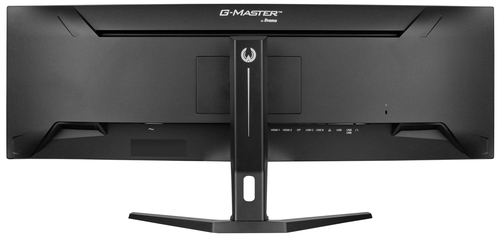

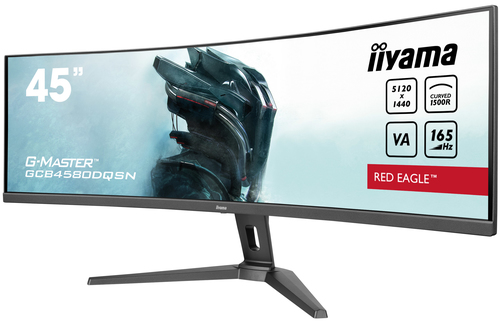

iiyama G-MASTER RED EAGLE CURVED, 113 cm (44.5"), 5120 x 1440 pixels, Dual QHD, LED, 0.8 ms, Black
DQHD Ultra-wide 32:9 monitors boasting DQHD 5120 x 1440 resolution, also recognized as Dual QHD, guarantee razor-sharp images that bring your games to life. These monitors empower you to organize your gaming setup for an unparalleled gaming experience. You won't miss a single detail!
165Hz & 0.8ms MPRT With 165Hz refresh rate and 0.8ms MPRT response time the force is with you! Make split second decisions and be sure the image on the screen is always sharp and smooth.
CURVED DESIGN 1500R The 1500R curvature of the screen guarantees a realistic and comfortable viewing experience allowing you to really immerse yourself in the game.
VA PANEL TECHNOLOGY Guaranteeing excellent contrast ratio making all the nuances between the light and dark colours clearly visible.
Black Tuner The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.
Specifications
| Brand | IIYAMA |
|---|---|
| Manufacturer part no. | GCB4580DQSN-B1 |
| Our part no. | CJ82438 |
| EAN | 4948570122264 |
| Category | Monitors & Displays › Touch & Portable Monitors |
| Weight | 16.2 kg |
| Display | |
| Display diagonal | 113 cm (44.5") |
| Display resolution | 5120 x 1440 pixels |
| HD type | Dual QHD |
| Native aspect ratio | 32:9 |
| Display technology | LED |
| Panel type | VA |
| Backlight type | LED |
| Touchscreen | No |
| Display brightness (typical) | 450 cd/m² |
| Response time | 0.8 ms |
| Response time (MPRT) | 0.8 ms |
| Display surface | Matt |
| Screen shape | Curved |
| Screen curvature rating | 1500R |
| Aspect ratio | 32:9 |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 80000000:1 |
| Maximum refresh rate | 165 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.212 x 0.212 mm |
| Horizontal scan range | 30 - 260 kHz |
| Viewable size, horizontal | 108.8 cm |
| Viewable size, vertical | 30.6 cm |
| Digital horizontal frequency | 30 - 260 kHz |
| Display diagonal (metric) | 113 cm |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
| DDC/CI | Yes |
| Colour depth | 8 bit |
| sRGB coverage (typical) | 100% |
| NTSC coverage (typical) | 80% |
| Performance | |
| AMD FreeSync | Yes |
| ConnectShare (USB) | Yes |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Design | |
| Market positioning | Gaming |
| Product colour | Black |
| Detachable stand | Yes |
| Feet colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Number of downstream ports | 3 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 3 |
| USB Type-C downstream ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 90 W |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Built-in KVM switch | Yes |
| HDCP | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100,200 x 100 mm |
| Wall mountable | No |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 13 cm |
| Tilt adjustment | Yes |
| Tilt angle range | 3 - 20° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Czech, German, English, French, Italian, Japanese, Dutch, Polish, Russian |
| Number of OSD languages | 9 |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 37 kWh |
| Energy consumption (HDR) per 1000 hours | 67 kWh |
| Power consumption (typical) | 37 W |
| Power consumption (standby) | 37 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Weight & dimensions | |
| Width (with stand) | 1090 mm |
| Depth (with stand) | 275 mm |
| Height (with stand) | 539 mm |
| Weight (with stand) | 11.2 kg |
| Height (without stand) | 409 mm |
| Weight (without stand) | 8.9 kg |
| Packaging data | |
| Package width | 1260 mm |
| Package depth | 315 mm |
| Package height | 470 mm |
| Package weight | 16.4 kg |
| Packaging content | |
| Stand included | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Other features | |
| Brand specific technologies | Black Equalizer, Eye Saver |
| User controls | picture (brightness, contrast, Black Tuner, Sharpness, OD, Adv. Contrast, Night Mode, X-Res Technology), colour (warm, normal, cool, user colour, blue light reducer, gamma), input select, PBP (PBP mode, sub win input, PBP Swap, audio input), audio (volume, mute), i-Style Mode, language, OSD settings (OSD H. position, OSD V. position, OSD background, OSD time out, information), setup menu (memory recall, MST, DSC, HDMI, KVM, USB-C, USB BC, video adjust mode, HDMI RGB range, direct drive, Adaptive Sync, MBR, HDR, opening logo, LED) |
| Volume control | Buttons |
| Packaging content | quick start guide, safety guide |
| Weight | 11.2 kg |
| Height | 409 mm |
| Width | 1090 mm |
| Depth | 275 mm |
| Control panel | navigation button: Menu/Execution, Down (i-Style Colour), Up (Input Select), Right (Volume), Left (Night Mode), Power |
| Compliance certificates | CE, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Ethernet LAN (RJ-45) ports | 1 |
| Supplied AC adapter type | AC |
| Technical details | |
| Native refresh rate | 60 Hz |
