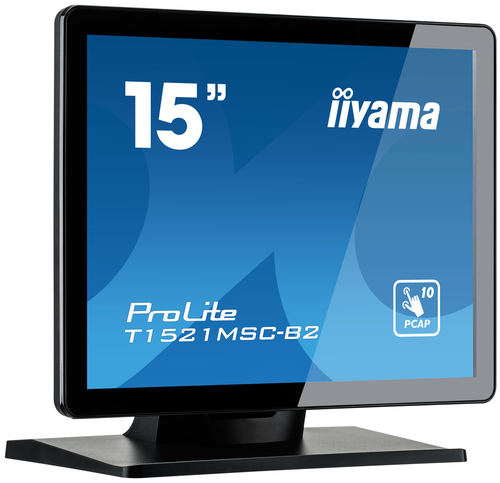

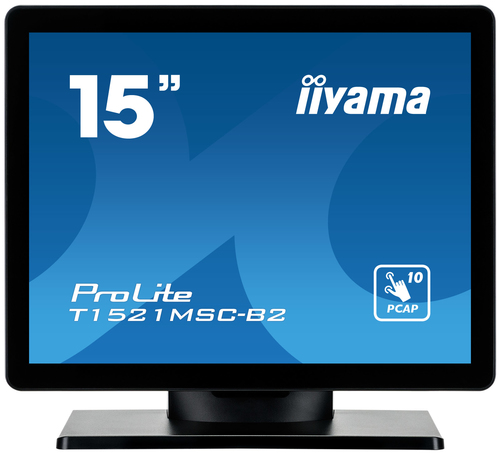

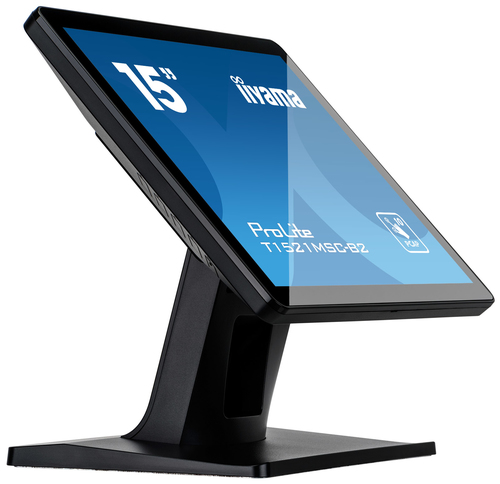

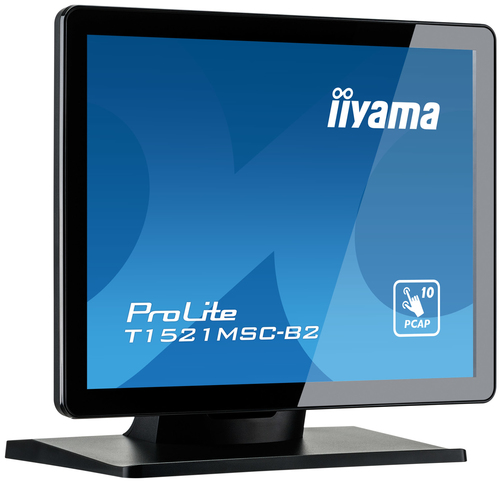

iiyama ProLite T1521MSC-B2 computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Tabletop Black

Description

iiyama ProLite T1521MSC-B2, 38.1 cm (15"), 1024 x 768 pixels, XGA, LED, 8 ms, Black

The ProLite T1521MSC-B2 15” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 70 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering, and includes a handy function to deactivate the touchscreen for cleaning. The ProLite T1521MSC-B2 is an incredibly powerful touch solution, perfect for instore retail purposes.

Specifications

BrandIIYAMA
Manufacturer part no.T1521MSC-B2
Our part no.CJ82457
EAN4948570120642
CategoryMonitors & Displays › Other (0352)
Weight5 kg
Display
Display diagonal38.1 cm (15")
Display resolution1024 x 768 pixels
HD typeXGA
Native aspect ratio4:3
Display technologyLED
Panel typeTN
Backlight typeLED
TouchscreenYes
Touchscreen typeTabletop
Touchscreen technologyProjected capacitive system
Touch technologyMulti-touch
Number of simultaneous touchpoints10
Display brightness (peak)370 cd/m²
Display brightness (typical)370 cd/m²
Display brightness325 cd/m²
Response time8 ms
Display surfaceMatt
Screen shapeFlat
Contrast ratio (typical)800:1
Viewing angle, horizontal170°
Viewing angle, vertical160°
Display number of colours16.7 million colours
Pixel pitch0.297 x 0.297 mm
Horizontal scan range31.4 - 60 kHz
Viewable size, horizontal30.4 cm
Viewable size, vertical22.8 cm
Display diagonal (metric)38 cm
DDC/CIYes
Surface hardness7H
Performance
NVIDIA G-SYNCNo
AMD FreeSyncNo
Multimedia
Number of speakers2
RMS rated power4 W
Built-in speaker(s)Yes
Built-in cameraNo
Design
Market positioningBusiness
Product colourBlack
Front bezel colourBlack
Feet colourBlack
Glass thickness1.2 mm
Ports & interfaces
Built-in USB hubNo
USB Touch portYes
VGA (D-Sub) ports quantity1
HDMIYes
HDMI ports quantity1
Ergonomics
VESA mountingYes
Panel mounting interface75 x 75 mm
Cable managementYes
Tilt adjustmentYes
Tilt angle range10 - 70°
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesGerman, English, Spanish, French, Italian, Japanese, Dutch, Russian
Number of OSD languages8
Power
Energy efficiency class (SDR)E
Energy efficiency class (HDR)Not available
Energy consumption (SDR) per 1000 hours11 kWh
Power consumption (typical)16 W
Power consumption (standby)1.5 W
Power consumption (off)0.5 W
AC adapter output voltage12 V
Power supply typeExternal
Energy efficiency scaleA to G
Weight & dimensions
Width (with stand)340.5 mm
Depth (with stand)198 mm
Height (with stand)308 mm
Weight (with stand)3.5 kg
Packaging content
Stand includedYes
Cables includedAC, USB, HDMI
Power adapter includedYes
Quick start guideYes
ManualYes
Sustainability
Sustainability complianceYes
Sustainability certificatesErP
Other features
International Protection (IP) codeIPX3
Compatible operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
AC adapter includedYes
User controlspicture (backlight, brightness, contrast, sharpness), display (auto adjustment, H position, V position, pixel clock, phase), color (color temp, picture mode), input, audio (volume, mute), other (reset, OSD time, OSD H position, OSD V position, language), information
Brightness325 cd/m²
Packaging contentAC adapter, mylar sheet (for VESA mount)
Active display area (W x H)304 x 228 mm
Touch methodstylus, finger, glove (latex)
Weight3.5 kg
Height308 mm
Width340.5 mm
Depth198 mm
Control panelMenu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power
Compliance certificatesCE, cULus, EAC, REACH, RoHS, UKCA, WEEE
