Basket

Description

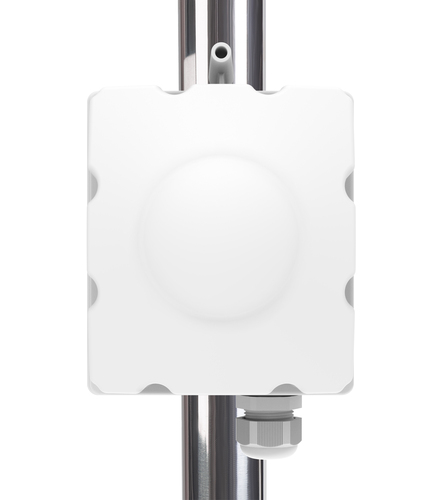

SilverNet SIL STREAM 60L-PCP, Network bridge, 2500 Mbit/s, Ethernet LAN, White

The NEW SIL STREAM 60L-PCP takes all the amazing specification of the 605 and increases the range with a precision antenna to achieve up to 2KM with LOS. In an ultra-compact size (12.5x11x12cm) the 60L packs a punch of still offering 6/12 channels, 2.5Gbps of available throughput and 256AES+ over the air data security.

All SilverNet STREAM radios come with a 2 year warranty (extendable to 5 years) and are integrated into our FREE NMS SilverView.

If your looking to build out a secure wireless network, look no further, SilverNet have the right products for you, end to end.

Try out our STREAM 60GHz link calculator here https://silvernet.com/60ghz-wireless-link-calculator/

Note

In the UK, OFCOM " have introduced a new ‘Spectrum Access: EHF’ licence to enable simple, flexible access to over 32 GHz of radio spectrum across four bands", including 57-71GHz.

Any equipment operating with an EIRP of 40-55dBm will require the owner or operator to have a EHF Licence. The use of this higher power equipment is also restricted to fixed outdoor use only.

The fee for the licence is currently £75, renewable every five years and covers unlimited devices and locations.

For more information please visit the Ofcom website https://www.ofcom.org.uk/manage-your-licence/radiocommunication-licences/spectrum-access-ehf

Specifications

BrandSILVERNET
Manufacturer part no.SIL STREAM 60L-PCP
Our part no.CK04821
CategoryNetworking › Wireless Access Points
Weight0 kg
Data transmission
Maximum data transfer rate2500 Mbit/s
Maximum transfer distance2000 m
Supported data transfer rates10, 100, 1000, 2500
Antenna
Antenna designInternal
Antenna type1x1
Antenna gain level (max)32 dBi
Wireless LAN features
Frequency band57-71 GHz
Channels quantity12 channels
Modulation16-QAM, BPSK, QPSK
Output power (dBm)55 EIRP
Outdoor range2000m
Network
Ethernet LANYes
Ethernet LAN interface type2.5 Gigabit Ethernet
Ethernet LAN data rates1000,2500 Mbit/s
Cabling technology10/100/1000Base-T(X)
Full duplexYes
Static IPYes
Dynamic IPYes
Ports & interfaces
Connectivity technologyWired & Wireless
Ethernet LAN (RJ-45) ports1
Security
Security algorithms256-bit AES
Security featuresOver-The-Air Security
Management features
Management protocolsVLAN, MIB, SNMP V2 / V3
Web-based managementYes
DHCP clientYes
Wireless statisticsYes
Features
Product typeNetwork bridge
Mounting typeWall/Pole
Product colourWhite
LED indicatorsLAN, Power, Signal strength, WLAN
Power LEDYes
Automatic Transmit Power Control (ATPC)Yes
Reset buttonYes
International Protection (IP) codeIP67
Quality of Service (QoS) supportYes
Network Time Protocol (NTP) clientYes
Power
Power source typeDC, PoE
Power consumption (typical)17 W
Power consumption (max)41 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) voltage48 V
DC output current0.5 A
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-20 - 70 °C
Certificates
CertificationFCC IC CE VCCI TELEC RCM
Weight & dimensions
Width110 mm
Depth120 mm
Height125 mm
Weight800 g
Packaging content
Packaging contentComplete radio link. Includes 2 x radios, 2 x PoE injector PSU's and 2 x Tilt and Swivel 3 Axis mounting brackets.
PoE+ Injector(s)Yes

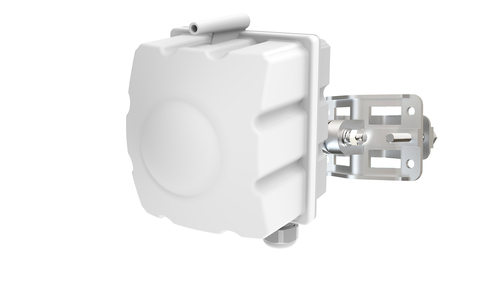

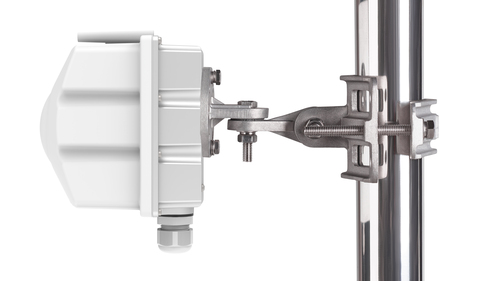

Mounting bracket(s) includedYes
Power supply includedYes
Antenna includedYes
Quick installation guideYes
Other features
Warranty period2 year(s)
Packaging data
Package width397 mm
Package depth305 mm
Package height147 mm
Package weight4.12 kg
Package typeBox
Logistics data
UK Trade Tariff code85176200
Country of originUnited Kingdom
