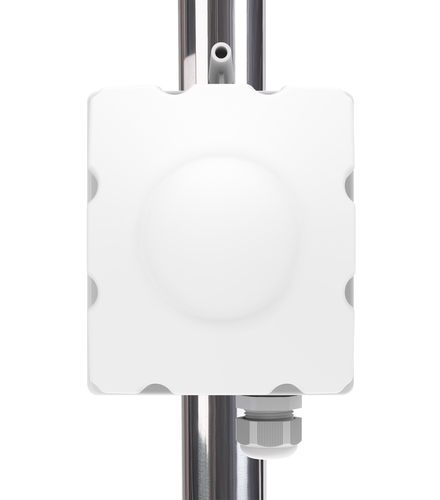

SilverNet SIL STREAM 60L, Network bridge, 2500 Mbit/s, Ethernet LAN, White

The SIL STREAM 60L enhances the impressive specifications of the 605 by extending its range with a precision antenna, achieving up to 2KM with Line of Sight (LOS). Despite its ultra-compact dimensions (12.5x11x12cm), the 60L delivers robust performance, offering 6/12 channels, 2.5Gbps of available throughput, and 256-bit AES+ over-the-air data security.

The SIL STREAM 60L comes with a 2-year warranty, which is extendable to 5 years, and integrates seamlessly with our complimentary NMS SilverView.

If you're aiming to establish a secure wireless network, your search ends here. SilverNet provides the perfect end-to-end products for your needs.

Try out our STREAM 60GHz link calculator here https://silvernet.com/60ghz-wireless-link-calculator/

Note

In the UK, OFCOM " have introduced a new ‘Spectrum Access: EHF’ licence to enable simple, flexible access to over 32 GHz of radio spectrum across four bands", including 57-71GHz.

Any equipment operating with an EIRP of 40-55dBm will require the owner or operator to have a EHF Licence. The use of this higher power equipment is also restricted to fixed outdoor use only.

The fee for the licence is currently £75, renewable every five years and covers unlimited devices and locations.

For more information please visit the Ofcom website https://www.ofcom.org.uk/manage-your-licence/radiocommunication-licences/spectrum-access-ehf

Specifications

BrandSILVERNET
Manufacturer part no.SIL STREAM 60L
Our part no.CK04823
CategoryNetworking › Wireless Access Points
Weight0 kg
Data transmission
Maximum data transfer rate2500 Mbit/s
Maximum transfer distance2000 m
Supported data transfer rates10, 100, 1000, 2500
Antenna
Antenna designInternal
Antenna type1x1
Antenna gain level (max)32 dBi
Wireless LAN features
Frequency band57-71 GHz
Channels quantity12 channels
Modulation16-QAM, BPSK, QPSK
Output power (dBm)55 EIRP
Outdoor range2000m
Network
Ethernet LANYes
Ethernet LAN interface typeMulti-Gigabit Ethernet
Ethernet LAN data rates1000,2500 Mbit/s
Cabling technology10/100/1000Base-T(X)
Full duplexYes
Static IPYes
Dynamic IPYes
Ports & interfaces
Connectivity technologyWired & Wireless
Ethernet LAN (RJ-45) ports1
Security
Security algorithms256-bit AES
Security featuresOver-The-Air Security
Management features
Management protocolsVLAN, MIB, SNMP V2 / V3
Web-based managementYes
DHCP clientYes
Wireless statisticsYes
Features
Product typeNetwork bridge
Mounting typeWall/Pole
Product colourWhite
LED indicatorsLAN, Power, Signal strength, WLAN
Power LEDYes
Automatic Transmit Power Control (ATPC)Yes
International Protection (IP) codeIP67
Quality of Service (QoS) supportYes
Network Time Protocol (NTP) clientYes
Power
Power source typeDC, PoE
Power consumption (typical)17 W
Power consumption (max)41 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) voltage48 V
DC output current0.5 A
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-20 - 70 °C
Certificates
CertificationFCC IC CE VCCI TELEC RCM
Weight & dimensions
Width110 mm
Depth120 mm
Height125 mm
Weight800 g
Packaging content

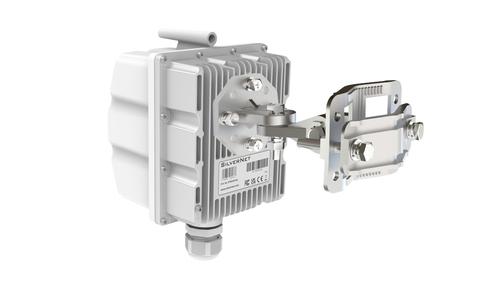

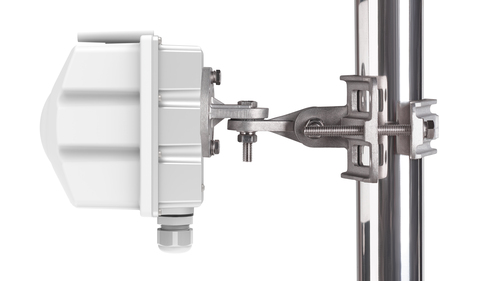

Packaging contentIncludes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.
PoE+ Injector(s)Yes
Mounting bracket(s) includedYes
Power supply includedYes
Antenna includedYes
Quick installation guideYes
Other features
Warranty period2 year(s)
Packaging data
Package width185 mm
Package depth286 mm
Package height135 mm
Package weight1.92 kg
Package typeBox
Quantity per pack1 pc(s)
Logistics data
UK Trade Tariff code85176200
Country of originUnited Kingdom
