Description

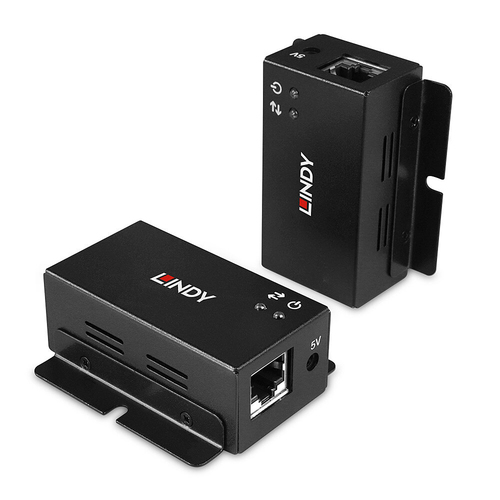

Lindy 50m 2 Port USB 2.0 Cat. 6 Extender, Network transmitter & receiver, 50 m, 480 Mbit/s, Cat5e, Cat6, NS1021, Black
This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 50m. A standard, low cost Cat.6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 43386 |
| Our part no. | CK14265 |
| EAN | 4002888433860 |
| Category | Networking › USB Hubs & Adapters |
| Weight | 0.5 kg |
| Performance | |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 50 m |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5e, Cat6 |
| Chipset | NS1021 |
| Plug and Play | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| USB 2.0 ports quantity | 3 |
| DC-in jack | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Design | |
| Product colour | Black |
| Quantity per pack | 1 pc(s) |
| Power | |
| Input current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 125 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Transmitter width | 6.02 cm |
| Transmitter depth | 6.7 cm |
| Transmitter height | 2.37 cm |
| Transmitter weight | 195 g |
| Receiver width | 6.02 cm |
| Receiver depth | 6.7 cm |
| Receiver height | 2.6 cm |
| Receiver weight | 195 g |
| Packaging content | |
| Cables included | USB |
| Manual | Yes |
| AC adapter included | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
