Description

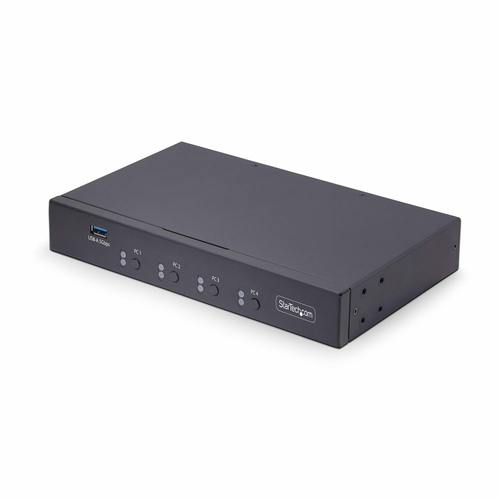

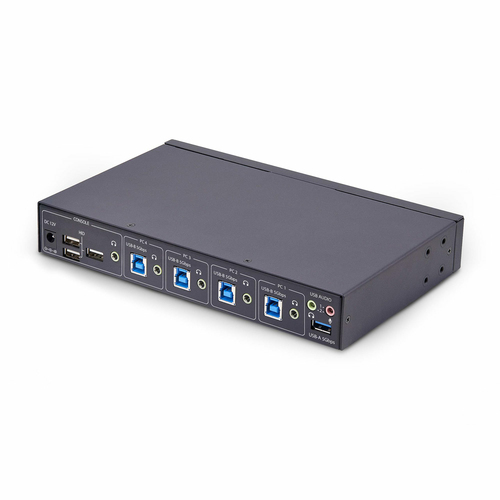

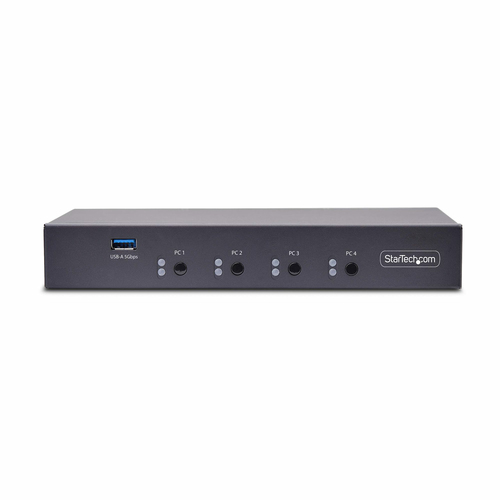

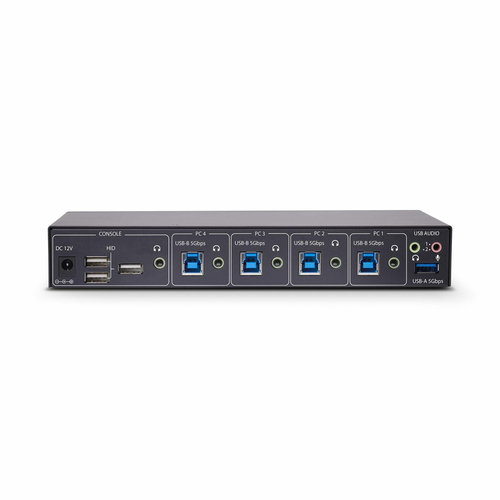

StarTech.com 4-Port KM Switch with Mouse Switching, USB Switch for Keyboard/Mouse, 3.5mm/USB Audio, Peripheral Sharing for 4 Computers, TAA Compliant, Black
Control up to four computers with a single keyboard and mouse
This Keyboard and Mouse (KM) Switch enables switching a single keyboard and mouse between multiple computers using mouse roaming, allowing users to seamlessly move the cursor across multiple screens (i.e., one monitor per computer).
Mouse Switching
Switch between computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency. Hotkey and push-button switching are universally compatible. Mouse Switching is supported by most major desktop operating systems, including Windows, macOS, and Linux.
Preset Monitor Layouts
To accommodate various physical monitor setups, there are four preset display configurations available. This allows for smooth mouse movement across host monitors.
Thoughtful Design
Hotkeys enable listening to audio from one computer while controlling another. USB audio and 3.5mm pass-through are available, and LEDs provide visual port selection status, while an audible buzzer confirms hotkey selection.
Note: On computers with multiple monitors connected with Mouse Switching/Roaming enabled, mouse/keyboard operation is limited to the primary display
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | P4A20132-KM-SWITCH |
| Our part no. | CK19142 |
| EAN | 0065030902250 |
| Category | Networking › KVM & Extenders |
| Weight | 1.2 kg |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, USB A |
| USB 2.0 Type-A hub ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Performance | |
| HD type | Not supported |
| Data transfer rate (max) | 5 Gbit/s |
| Chipset | GL3523 |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 156000 h |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 5 A |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 220 mm |
| Height | 34 mm |
| Weight | 800 g |
| Packaging data | |
| Package width | 295 mm |
| Package depth | 245 mm |
| Package height | 63 mm |
| Package weight | 180 g |
| Packaging content | |
| Quick installation guide | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 505 mm |
| Master (outer) case height | 290 mm |
| Products per master (outer) case | 8 pc(s) |
