Description

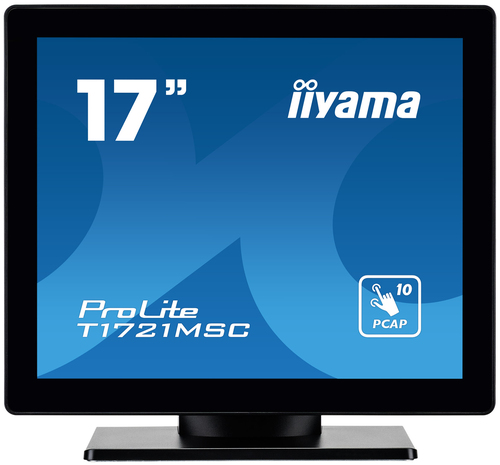

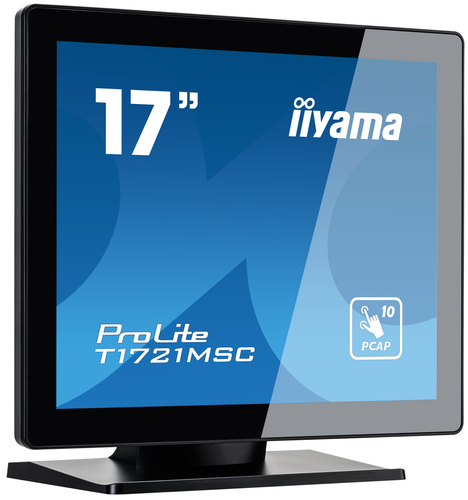

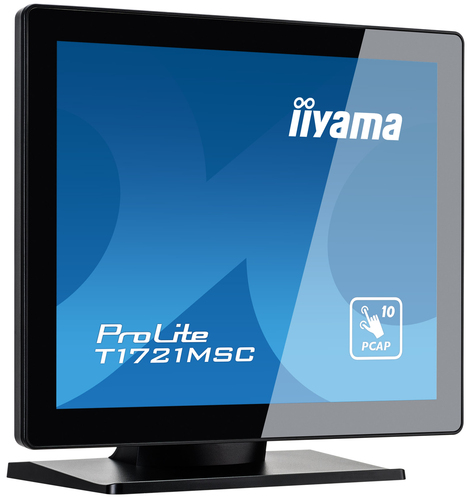

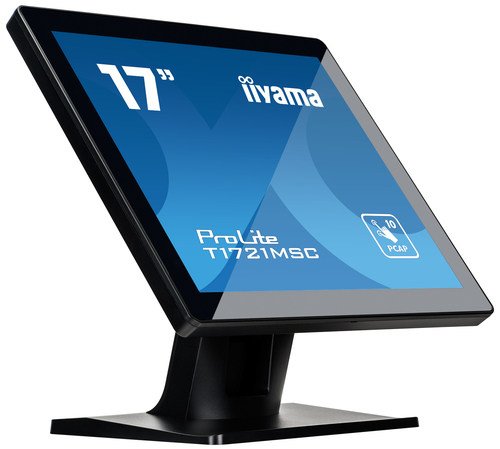

iiyama ProLite T1721MSC-B2, 43.2 cm (17"), 1280 x 1024 pixels, SXGA, LED, 5 ms, Black
The ProLite T1721MSC-B2 17” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 80 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering and include a handy function to deactivate the touchscreen for cleaning. The ProLite T1721MSC-B2 is an incredibly powerful touch solution, perfect for instore retail purposes.
Specifications
| Brand | IIYAMA |
|---|---|
| Manufacturer part no. | T1721MSC-B2 |
| Our part no. | CK23661 |
| EAN | 4948570120659 |
| Category | Monitors & Displays › Touch & Portable Monitors |
| Weight | 6.1 kg |
| Display | |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| HD type | SXGA |
| Native aspect ratio | 5:4 |
| Display technology | LED |
| Panel type | TN |
| Backlight type | LED |
| Touchscreen | Yes |
| Touchscreen type | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 230 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Display brightness | 230 cd/m² |
| Response time | 5 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31.4 - 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27.1 cm |
| Display diagonal (metric) | 43 cm |
| DDC/CI | Yes |
| Surface hardness | 7H |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |
| Glass thickness | 1.5 mm |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| Audio input | Yes |
| Headphone out | Yes |
| HDCP | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Tilt angle range | 10 - 70° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 8 |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Width (with stand) | 392.5 mm |
| Depth (with stand) | 198 mm |
| Height (with stand) | 364 mm |
| Weight (with stand) | 4.4 kg |
| Packaging data | |
| Package width | 537 mm |
| Package depth | 172 mm |
| Package height | 500 mm |
| Package weight | 5.8 kg |
| USB cable length | 1.8 m |
| Packaging content | |
| Stand included | Yes |
| Cables included | AC, USB, HDMI |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Other features | |
| International Protection (IP) code | IPX3 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| AC adapter included | Yes |
| Brightness | 230 cd/m² |
| Packaging content | AC adapter, mylar sheet (for VESA mount) |
| Active display area (W x H) | 338 x 270.5 mm |
| USB ports quantity | 1 |
| Weight | 4.4 kg |
| Height | 364 mm |
| User controls | picture (backlight, brightness, contrast, sharpness) display (auto adjustment, H position, V position, pixel clock, phase) colour (colour temp, picture mode) input, audio (volume, mute, audio source), other (reset, OSD time, OSD H position, OSD V position, language) information |
| Touch method | stylus, finger, glove (latex) |
| Width | 392.5 mm |
| Depth | 198 mm |
| Control panel | Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power |
| Compliance certificates | CE, cULus, REACH, RoHS, UKCA, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CE, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| Technical details | |
| Native refresh rate | 75 Hz |
