Description

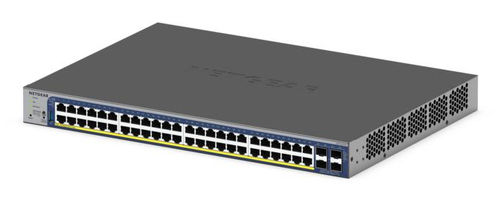

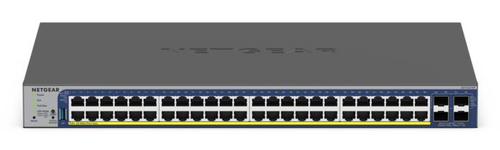

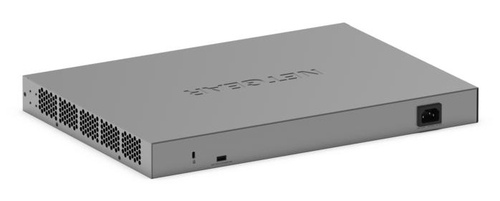

NETGEAR 52-Port PoE Gigabit/10G Stackable Smart Switch (GS752TXP), Managed, L2/L3/L4, 10G Ethernet (100/1000/10000), Full duplex, Power over Ethernet (PoE), Rack mounting
48-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 4 SFP+ Ports (380W)
Standalone Smart Switch designed for converged networks, big or small. 1-Year Insight subscription included.
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | GS752TXP-300EUS |
| Our part no. | CK49713 |
| EAN | 0606449171181 |
| Category | Networking › Managed Switches |
| Weight | 6 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1ab, IEEE 802.1as, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Data transmission | |
| MAC address table | 16000 entries |
| Latency (10 Gbps) | 4.107 µs |
| Static route | Yes |
| Number of static routes | 32 |
| Packet buffer memory | 16 MB |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Performance | |
| Built-in processor | Yes |
| Flash memory | 64 MB |
| Noise level | 36.6 dB |
| Mean time between failures (MTBF) | 1296949 h |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| Power consumption (max) | 51 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 380 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 2944.6 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 345 mm |
| Height | 43 mm |
| Weight | 5.54 kg |
