Description
Manhattan Wall Mount for TV & Monitors (Tiltable), For screens 37" to 65", VESA compatibility: all between 200x200mm to 600x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 45kg, Black, Bracket, 177.8 cm (70"), 200 x 200 mm, 600 x 400 mm, -12 - 12°, Steel, Black

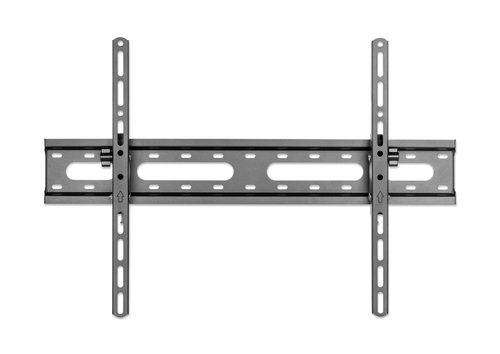

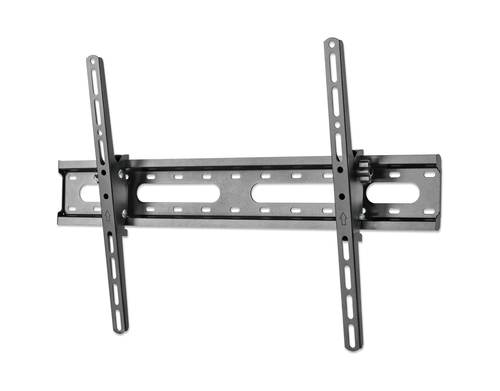

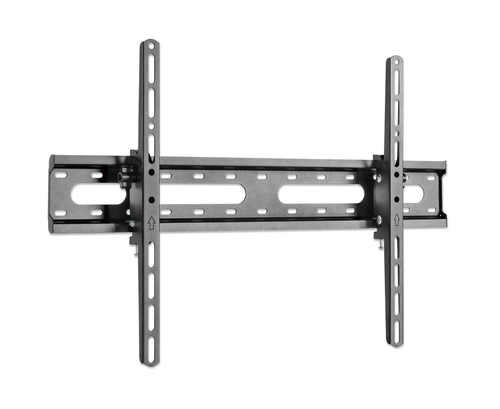

TV Tilting Wall Mount - an adjustable mounting bracket that puts displays in the right perspective and avoids annoying glare The Manhattan Tilting TV Wall Mount safely holds your TV and offers a tool-free -12 to 12° tilt adjustment with the turn of a knob for optimized views. Constructed of high-quality, powder-coated steel, it fits flat and curved LCD, LED or plasma TVs up to 70"" and weighing up to 45 kg (100 lbs.). This TV mount offers VESA compliance up to 600x400, and it's great for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Specifications
| Brand | MANHATTAN |
|---|---|
| Manufacturer part no. | 462280 |
| Our part no. | CK57776 |
| EAN | 0766623462280 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 1.6 kg |
| Mounting | |
| Maximum weight capacity | 45 kg |
| Minimum screen size | 94 cm (37") |
| Number of displays supported | 1 |
| Maximum screen size | 177.8 cm (70") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400 |
| Mounting type | Wall |
| Ergonomics | |
| Tilt adjustment | Yes |
| Tilt angle range | -12 - 12° |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Packaging content | Tilting TV Wall Mount Attachable bubble level Installation hardware with instructions |
| Weight & dimensions | |
| Width | 663 mm |
| Depth (max) | 42 cm |
| Height | 53 mm |
| Weight | 1.45 kg |
| Packaging data | |
| Package width | 105 mm |
| Package depth | 650 mm |
| Package height | 50 mm |
| Package weight | 1.62 kg |
| Package type | Box |
| Logistics data | |
| Master (outer) case width | 230 mm |
| Master (outer) case length | 670 mm |
| Master (outer) case height | 285 mm |
| Master (outer) case gross weight | 17.7 kg |
| Products per master (outer) case | 10 pc(s) |
