Description
Manhattan Wall Mount for TV & Monitors (Full Motion), For screens 37" to 120", VESA compatibility: all between 200x200mm to 900x600mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 120kg, Black, Bracket,Lifetime Warranty, 200 x 200 mm, 900 x 600 mm, -15 - 5°, -60 - 60°, Steel, Black

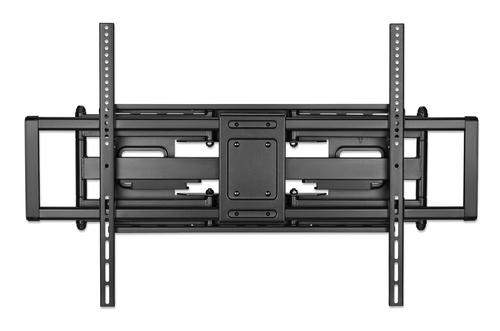

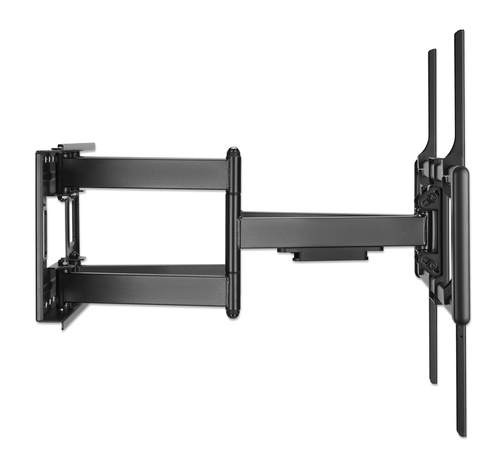

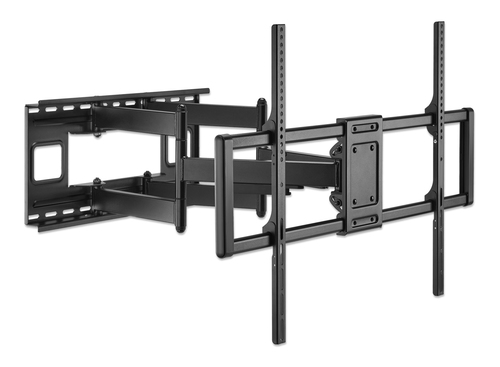

Ultra Heavy-Duty XXL Articulating TV Wall Bracket – fully adjustable mounting bracket that puts big-screen TVs in the right perspective and avoids annoying glare This super-strong full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and offers +5 to -15° tilt and +/-60° swivel adjustment for optimized views. Constructed of thick reinforced powder-coated steel up to 3 mm, this sturdy TV bracket fits flat and curved LCD, OLED or plasma TVs up to 120"" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level and +/-5° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. Intuitive quick-release latches let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Specifications
| Brand | MANHATTAN |
|---|---|
| Manufacturer part no. | 462358 |
| Our part no. | CK57777 |
| EAN | 0766623462358 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 18 kg |
| Mounting | |
| Maximum weight capacity | 120 kg |
| Minimum screen size | 152.4 cm (60") |
| Number of displays supported | 1 |
| Maximum screen size | 3.05 m (120") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 900 x 600 mm |
| Panel mounting interface | 200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400,800 x 600,900 x 600 |
| Mounting type | Wall |
| Ergonomics | |
| Adjustable depth | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 5° |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Cable management | Yes |
| Built-in spirit level | Yes |
| Distance to the wall (max) | 70.3 cm |
| Distance to the wall (min) | 7.5 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Packaging content | Heavy-Duty Large-Screen Full-Motion TV Wall Mount Attachable bubble level Installation hardware with instructions |
| Weight & dimensions | |
| Width | 1010 mm |
| Depth (max) | 70.3 cm |
| Height | 630 mm |
| Weight | 16.1 kg |
| Packaging data | |
| Package width | 1055 mm |
| Package depth | 355 mm |
| Package height | 95 mm |
| Package weight | 16.9 kg |
| Package type | Box |
| Logistics data | |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 1050 mm |
| Master (outer) case height | 78 mm |
| Master (outer) case gross weight | 18 kg |
| Products per master (outer) case | 1 pc(s) |
