Description

Manhattan Desk Mount for TV & Monitors (Full Motion Spring), For screens 13" to 27", C-Clamp or Grommet Assembly, VESA compatibility: 75x75mm and 100x100mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 9kg, Black,Bracket, Clamp/Bolt-through, 9 kg, 43.2 cm (17"), 81.3 cm (32"), 100 x 100 mm, Black

Articulating Monitor Arm with One-Touch Gas Spring Adjustment - ergonomic, full motion and height adjustable Turn your (home) office desk into an ergonomic environment and reclaim valuable workspace with this Manhattan monitor mount. Since it uses a gas spring to hold your display, this monitor arm only needs a light touch to move your screen to the best viewing angle for you. The single-monitor VESA mount supports 17"" to 32"" displays with a weight capacity up to 9 kg (19.8 lbs.). An attractive black finish complements your workspace.

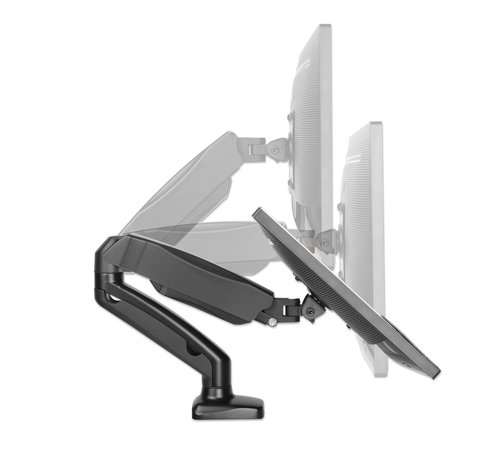

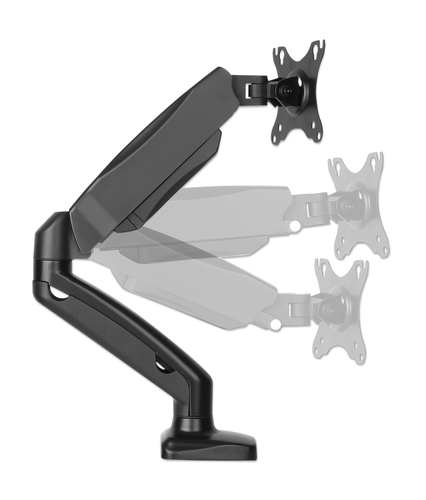

Light-touch height adjustment A gas-spring cylinder makes it easy to raise or lower the display anywhere from 158 to 406 mm (6.2 to 16 in.) so it can sit in the best place for your line of sight. Adjust the tension according to the weight of your monitor to reposition it effortlessly.

Full-motion view optimization The full-motion arm lets you extend, tilt and swivel across multiple axes, so it's easy to create an ergonomic workspace that fits your exact needs. You can also rotate your monitor from landscape to portrait orientation to view photos in portrait mode or see longer pages and blocks of code without having to scroll down.

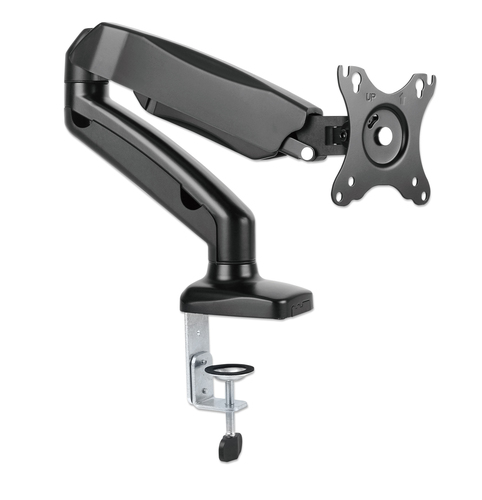

Easy installation You can either clamp the mount to the side of a desk, table or counter that is 10 to 85 mm (0.4 to 3.4 in.) thick, or you can mount it through a grommet hole that is 10 to 85 mm (0.4 to 3.4 in.) wide. All the hardware you need is included in the box.

Clean cable management Built-in cable management keeps the cords on your desk tidy and organized.

Specifications

BrandMANHATTAN
Manufacturer part no.462495
Our part no.CK57778
EAN0766623462495
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight2.6 kg
Mounting
Maximum weight capacity9 kg
Minimum screen size43.2 cm (17")
Number of displays supported1
Maximum weight capacity (per display)9 kg
Maximum screen size81.3 cm (32")
MountingClamp/Bolt-through
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Desk thickness (min)1 cm
Desk thickness (max)8.5 cm
Clamp mount desk thickness (max)1 cm
Grommet mount desk thickness (max)8.5 cm
Ergonomics
Height adjustmentYes
Height adjustment typeGas spring
Height adjustment range158 - 406 mm
Tilt angle range-45 - 90°
SwivellingYes
Swivel angle180°
Angle of rotation360°
Cable managementYes
Design
Housing materialAluminium
Product colourBlack
OrientationLandscape/Portrait
Weight & dimensions
Width117 mm
Depth468 mm
Height570 mm
Weight2.23 kg
Packaging data
Package width122 mm
Package depth292 mm
Package height402 mm
Package weight2.76 kg
Package typeBox
Packaging content
ManualYes
Sustainability
Sustainability complianceYes
Other features
Compliance certificatesCE, RoHS
Logistics data
Master (outer) case width390 mm
Master (outer) case length604 mm
Master (outer) case height425 mm
Master (outer) case gross weight17.5 kg
Products per master (outer) case6 pc(s)
