Description

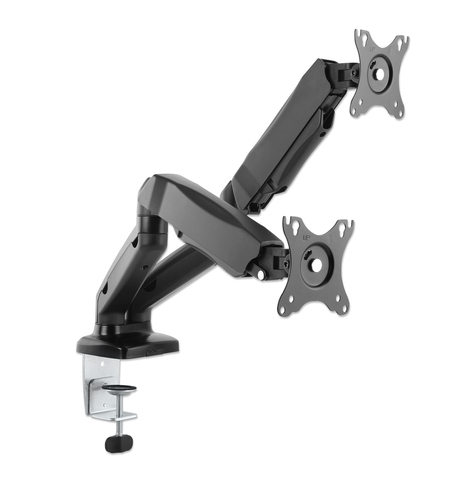

Manhattan Dual Desk Mount for TV & Monitors (Full Motion Spring), For screens 10" to 27", C-Clamp or Grommet Assembly,VESA compatibility: 75x75 and 100x100mm -check the dimensions of the four mounting holes on back of screen to ensure it fits,Max 9kg (each),Bracket, Clamp/Bolt-through, 18 kg, 43.2 cm (17"), 81.3 cm (32"), 100 x 100 mm, Black

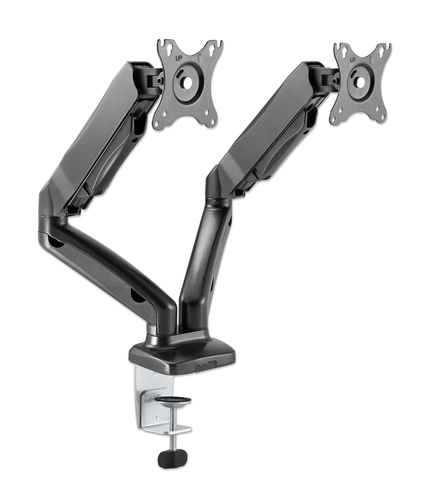

Articulating Dual Monitor Arms with One-Touch Gas Spring Adjustment - ergonomic, full motion and height adjustable Turn your (home) office desk into an ergonomic environment and reclaim valuable workspace with this Manhattan monitor mount. Since it uses a gas spring to hold your displays, these monitor arms only need a light touch to move your screen to the best viewing angle for you. The dual monitor VESA mount supports 17"" to 32"" displays with a weight capacity up to 9 kg (19.8 lbs.) each. An attractive black finish complements your workspace.

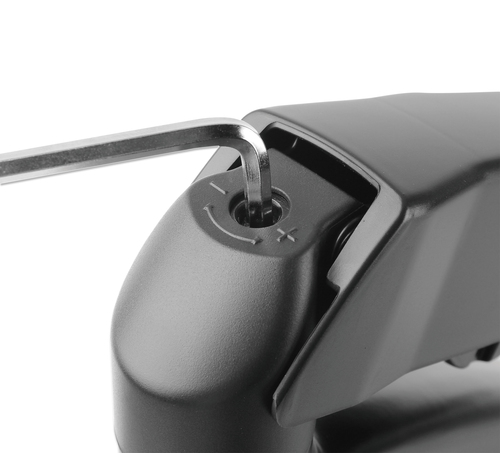

Light-touch height adjustment A gas-spring cylinder makes it easy to raise or lower the display anywhere from 158 to 406 mm (6.2 to 16 in.) so it can sit in the best place for your line of sight. Adjust the tension according to the weight of your monitors to reposition them effortlessly.

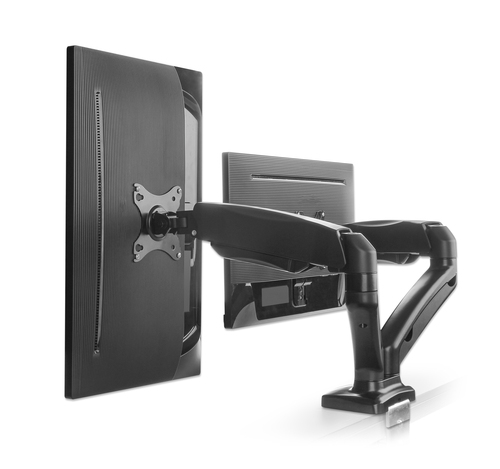

Full-motion view optimization The full-motion arms let you extend, tilt and swivel across multiple axes, so it's easy to create an ergonomic workspace that fits your exact needs. You can also rotate your monitors from landscape to portrait orientation to view photos in portrait mode or see longer pages and blocks of code without having to scroll down.

Easy installation You can either clamp the mount to the side of a desk, table or counter that is 10 to 83 mm (0.4 to 3.3 in.) thick, or you can mount it through a grommet hole that is 10 to 83 mm (0.4 to 3.3 in.) wide. All the hardware you need is included in the box.

Clean cable management Built-in cable management keeps the cords on your desk tidy and organized.

Specifications

BrandMANHATTAN
Manufacturer part no.462501
Our part no.CK57779
EAN0766623462501
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight4.3 kg
Mounting
Maximum weight capacity18 kg
Minimum screen size43.2 cm (17")
Number of displays supported2
Maximum weight capacity (per display)9 kg
Maximum screen size81.3 cm (32")
MountingClamp/Bolt-through
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Panel mounting interface75 x 75,100 x 100 mm
Extension arm (max)45 cm
Desk thickness (min)1 cm
Desk thickness (max)8.3 cm
Clamp mount desk thickness (max)1 cm
Grommet mount desk thickness (max)8.3 cm
Ergonomics
Height adjustmentYes
Height adjustment typeGas spring
Height adjustment range158 - 406 mm
SwivellingYes
Swivel angle180°
Angle of rotation360°
Design
Housing materialAluminium
Product colourBlack
Weight & dimensions
Width112 mm
Depth570 mm
Height942 mm
Weight3.83 kg
Packaging data
Package width150 mm
Package depth172 mm
Package height672 mm
Package weight4.36 kg
Package typeBox
Packaging content
Mounting kitYes
ManualYes
Packaging contentAluminum Gas Spring Dual Monitor Desk Mount Installation hardware with instructions
Sustainability
Sustainability complianceYes
Other features
Compliance certificatesCE, RoHS
Logistics data
Master (outer) case width364 mm
Master (outer) case length690 mm
Master (outer) case height320 mm
Master (outer) case gross weight18.5 kg
Products per master (outer) case4 pc(s)
