Description

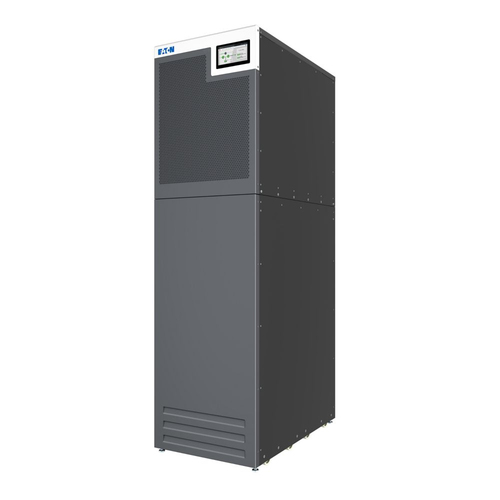

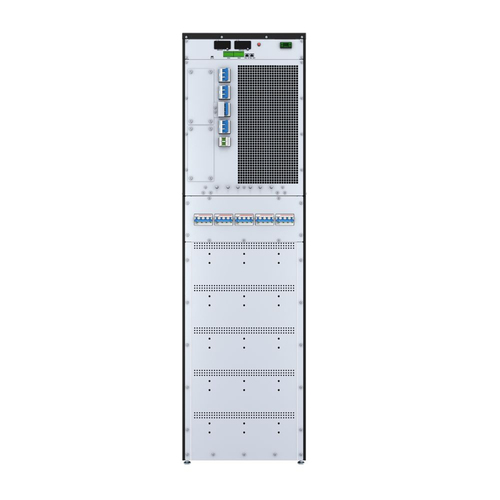

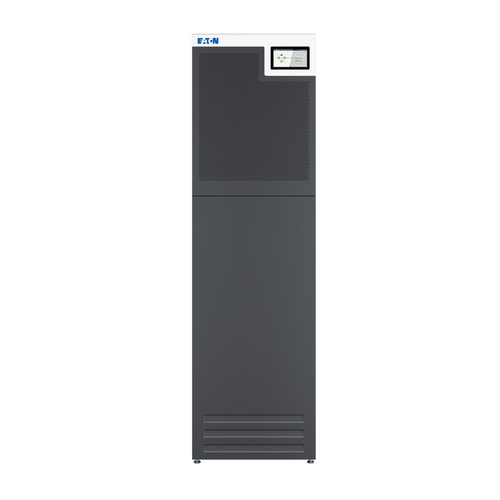

Eaton 93T60KMBSBI, Double-conversion (Online), 60 kVA, 60000 W, 380 V, 415 V, 50/60 Hz
The rapid adoption of the cloud, constant evolution of IT technologies, increased focus on environmental footprint and sophistication of mission - critical applications are demanding even more efficient, resilient and safe power protection solutions.
The new level of efficiency offered by the Eaton 93T UPS minimizes total cost of ownership while the safety and resiliency, both in infrastructure and IT layers, maximize availability and ensure business continuity
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | 93T60KMBSBI |
| Our part no. | CK60527 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 60 kVA |
| Output power | 60000 W |
| Input operation voltage (min) | 380 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency (ECO mode) | 99% |
| Output power factor | 1 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | Hardwire |
| Battery | |
| Battery capacity | 9 Ah |
| Number of batteries included | 4 pc(s) |
| Typical backup time at half load | 23 min |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Control type | Touch |
| Certificates | |
| Compliance certificates | RoHS, CB, CE |
| Certification | IEC/EN 62040-2 IEC/EN 62040-1 EN 62040-3 Manufactured in a plant certified to ISO 9001 and ISO 14001 management system standards |
| Packaging content | |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 500 mm |
| Depth | 820 mm |
| Height | 1750 mm |
| Weight | 644 kg |
