Description

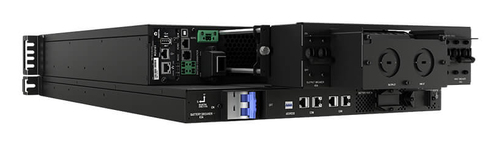

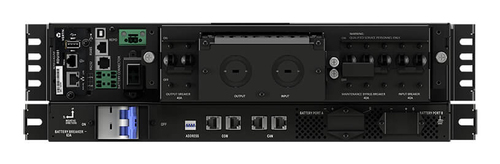

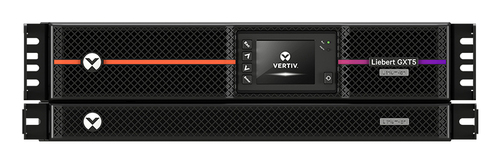

Vertiv Liebert GXT5LI-10KGVRT3UXLN, Double-conversion (Online), 10 kVA, 10000 W, Pure sine, 176 V, 288 V
The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). The battery offers industry-leading runtime to protect critical equipment during an unexpected power loss. It also gives better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times. It is hot-swappable and user-replaceable, so you can easily replace it without disrupting power to connected equipment. The Integrated Maintenance Bypass Cabinet (MBC) allows the user to continue to power connected equipment even during UPS maintenance or replacement.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | GXT5LI-10KGVRT3UXLN |
| Our part no. | CK63155 |
| EAN | 0767041026696 |
| Category | Power & UPS › UPS |
| Weight | 90 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 288 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 94% |
| Output power factor | 1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Noise level | 56 dB |
| Surge protection | Yes |
| Power protection features | Over voltage, Under voltage |
| Ports & interfaces | |
| AC outlet types | Hardwire |
| USB port | Yes |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Typical backup time at full load | 4 min |
| Typical backup time at half load | 11 min |
| Battery recharge time | 2 h |
| Hot-swap battery | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 3U |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | REACH, RoHS, WEEE |
| Packaging content | |
| Batteries included | Yes |
| Safety regulation & standards | |
| Safety | IEC 62040-1:2008+A1 2013, IEC 62619 1st Ed., UL 1642 (Li-Ion Battery Cells), UL 1973 (Li-Ion Battery Pack w/UPS), UL 1778, CSA 22.2 No. 107.3 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 430 mm |
| Depth | 890 mm |
| Height | 133 mm |
| Weight | 26 kg |
| Packaging data | |
| Package width | 798 mm |
| Package depth | 998 mm |
| Package height | 532 mm |
| Package weight | 75 kg |
| Logistics data | |
| Country of origin | China |
