Description

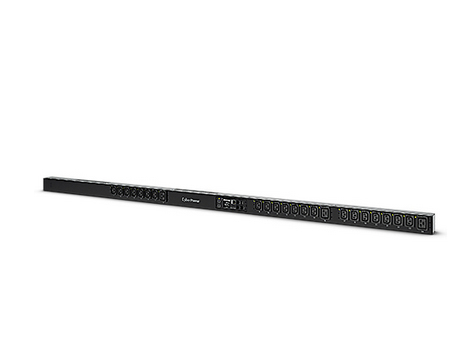

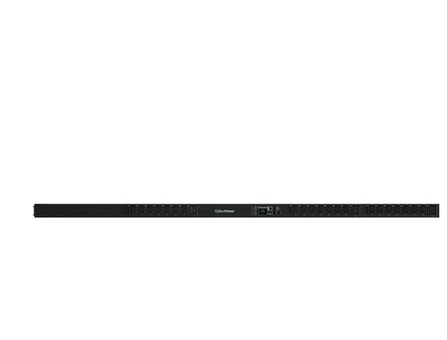

CyberPower PDU81405, Metered, Monitored, Switched, 0U, Single-phase, Vertical, Metal, Black
PDU81404
CyberPower PDU81404 is a network-grade power distribution unit ideal for data center and enterprise applications, providing real-time local/remote monitoring and on/off control of individual outlet for remote reboots, scheduled on/off and more. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address. The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices. The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
Specifications
| Brand | CYBERPOWER |
|---|---|
| Manufacturer part no. | PDU81405 |
| Our part no. | CK76814 |
| EAN | 4712856277210 |
| Category | Power & UPS › PDUs |
| Weight | 9.6 kg |
| Design | |
| PDU types | Metered, Monitored, Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Metal |
| Product colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Features | |
| Daisy chain | Yes |
| LED indicators | Yes |
| Cable length | 3.05 m |
| Management features | |
| Supported network protocols | IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog |
| Firmware upgradeable | Yes |
| Firmware upgradeable via | USB |
| Power | |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 / 60 Hz |
| Maximum current | 16 A |
| Certificates | |
| Certification | CE, EN 55032 Class A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3500 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 1665 mm |
| Depth | 56 mm |
| Height | 48 mm |
| Weight | 7 kg |
| Packaging data | |
| Package weight | 8.9 kg |
| Package width | 1895 mm |
| Package depth | 185 mm |
| Package height | 115 mm |
