Description

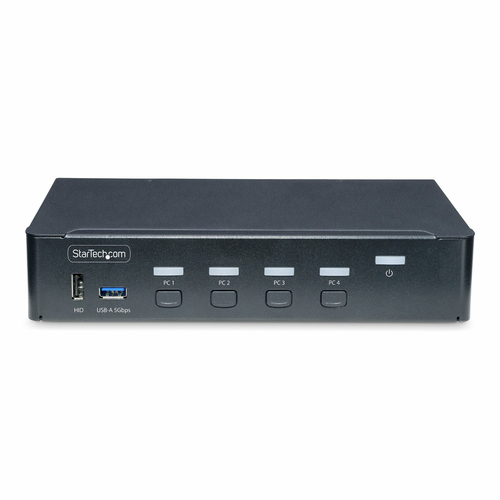

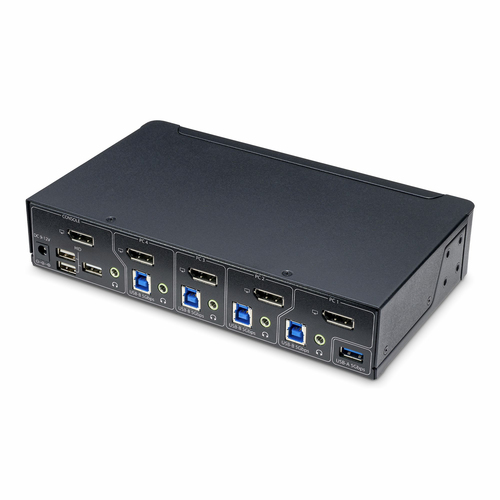

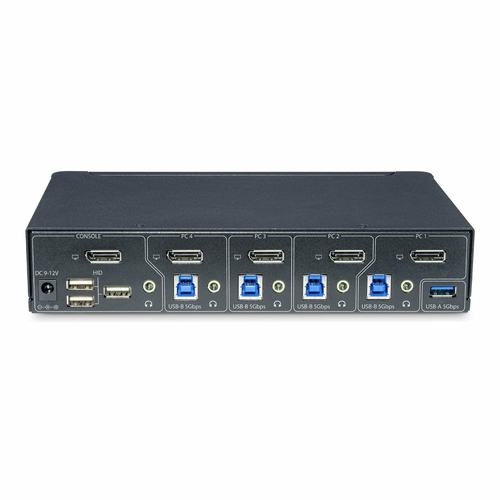

StarTech.com 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports, Push-Button & Hotkey Switching, DisplayPort 1.2, OS Independent, TAA Compliant, 4096 x 2160 pixels, 4K Ultra HD, Rack mounting, 36 W, Black

Share a mouse, keyboard, USB 5Gbps hub, audio output device, and 4K 60Hz DisplayPort display between four DisplayPort-enabled computers

This DisplayPort KVM Switch enables users to switch between four desktops equipped with USB-A and DisplayPort. It facilitates sharing a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and four USB 2.0 devices.

High-Resolution 4K 60Hz Video

This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. In addition, its support for High Dynamic Range (HDR) enhances contrast, brightness, color, and overall vibrancy.

Customizable Switching

This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.

Universal Compatibility

The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M1/M2/M3).

Reliable Performance

The rugged metal case helps prevent electromagnetic interference (EMI). 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.

Rackmount your KVM switch

If you'd like to mount this KVM switch to your server rack, we offer a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Specifications

BrandSTARTECH
Manufacturer part no.P4AD122-KVM-SWITCH
Our part no.CK79219
EAN0065030903264
CategoryNetworking › Other (0406)
Weight1.6 kg
Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity4
DisplayPort version1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity4
Console ports3.5mm headphone, DisplayPort, USB A
Console USB ports quantity4
Console DisplayPorts ports quantity1
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
Audio connectionsYes
Headphone outputs4
DC-in jackYes
Performance
HD type4K Ultra HD
Maximum resolution4096 x 2160 pixels
Data transfer rate (max)5 Gbit/s
Scan interval3,8,15,30 s
HDCPYes
Plug and PlayYes
ChipsetGL3523
Audio channels2.0
HDCP version1.4
Design
Rack mountingYes
Product colourBlack
Housing materialMetal
LED indicatorsYes
Push buttonYes
Hot keysYes
Mean time between failures (MTBF)130000 h
Display
Built-in displayNo
On Screen Display (OSD)No
Power
Power sourceDC
Input voltage100 - 240, 12 V
Input current1 A
Output current3 A
Power consumption (typical)36 W
Power plug typeType M
Compatible power plug typesAU, EU, UK, US
Sustainability
Sustainability complianceYes
Compliance certificatesRoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width130 mm
Depth220 mm
Height44 mm
Weight1 kg
Packaging data
Package width297 mm
Package depth246 mm
Package height88 mm
Package weight1.2 kg
Packaging content
Quick installation guideYes
Rubber feetYes
Other features
Display resolution at frequency3840x2160 @ 60hz 3840x2160 @ 30hz 2560x1600 @ 60hz 2560x1600 @ 30hz 2560x1440 @ 60hz 2048x1536 @ 60hz 2048x1536 @ 30hz 1920x1440 @ 60hz 1920x1200 @ 60hz 1920x1080 @ 60hz 1680x1050 @ 60hz 1600x1200 @ 60hz 1600x1024 @ 60hz 1600x900 @ 60hz 1440x1080 @ 60hz 1366x768 @ 60hz 1360x768 @ 60hz 1280x1024 @ 60hz 1280x960 @ 60hz 1280x800 @ 60hz 1280x768 @ 60hz 1280x720 @ 60hz 1176x664 @ 60hz 1152x864 @ 60hz 1024x768 @ 60hz 800x600 @ 60hz
Colour depth10 bit
IP controlNo
Logistics data
Master (outer) case width516 mm
Master (outer) case length322 mm
Master (outer) case height300 mm
Products per master (outer) case6 pc(s)
