Description

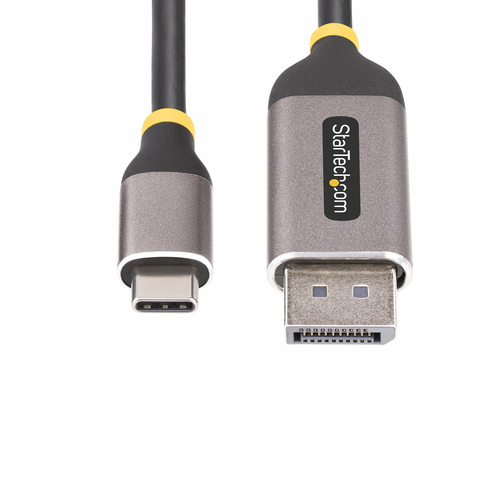

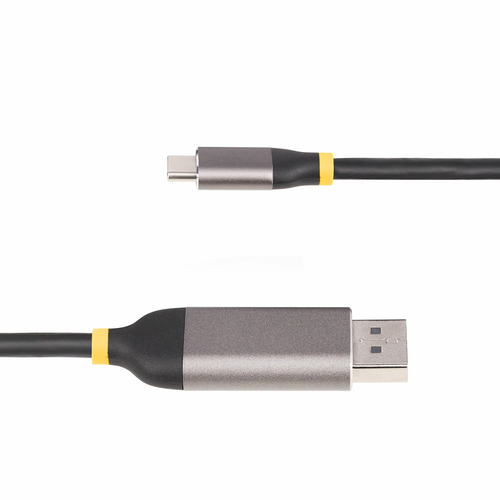

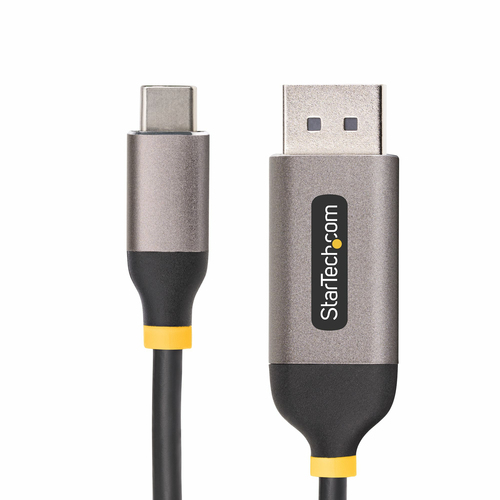

StarTech.com 10ft (3m) USB-C to DisplayPort Adapter Cable, 8K 60Hz, 4K 144Hz, HDR, USB Type-C to DP 1.4 Video Converter Cable, USB4/Thunderbolt 3/4 Compatible, 3 m, USB Type-C, DisplayPort, Male, Male, Straight
Connect a DisplayPort Alt Mode-enabled USB-C source to a DisplayPort monitor with support for resolutions up to 8K at 60Hz
Connect an 8K 60Hz or 4K 144Hz DisplayPort monitor to a DP Alt Mode-enabled USB Type-C source up to 9.8ft (3m) away with this USB-C to DisplayPort adapter cable.
High-Resolution HDR Video
This USB-C to DisplayPort Cable enables resolutions of up to 8K 60Hz and is DisplayPort 1.4 compliant. It supports HDR10, DSC, and 2 channel audio.
Universal Compatibility
The USB-C to DisplayPort Converter Cable is compatible with laptops and devices from various brands such as Dell, HP, Lenovo, Microsoft, and more. It works with all hardware platforms and any operating system. The USB Type-C to DisplayPort Cable requires no drivers or software and works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.
Thoughtfully Designed
Combining a video adapter and cable minimizes potential points of failure and signal loss. A latching DisplayPort connector reduces the risk of accidental disconnections. The cable is equipped with aluminum connector shells, providing enhanced durability, and shielding from Electromagnetic Interference (EMI).
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | 142-USBC-DP-8K-10F |
| Our part no. | CK87909 |
| EAN | 0065030901291 |
| Category | Cables & Adapters › USB Cables & Adapters |
| Weight | 0.1 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 3 m |
| Connector 1 | USB Type-C |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| HDCP | Yes |
| HDCP version | 1.4/2.2/2.3 |
| DisplayPort version | 1.4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 768 (WXGA), 1280 x 800, 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2560 x 1080, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 5120 x 2880, 7680 x 4320 |
| Bandwidth | 32400 MB/s |
| Maximum refresh rate | 144 Hz |
| Refresh rate at maximum resolution | 60 Hz |
| Product colour | Black, Grey |
| Chipset | VL103 |
| Jacket material | Thermoplastic elastomer (TPE) |
| Cable type | Round cable |
| Plug and Play | Yes |
| Latching connectors | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Compliance certificates | RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Cable diameter | 4.3 mm |
| Weight | 111 g |
| Packaging data | |
| Package width | 199 mm |
| Package depth | 169 mm |
| Package height | 20 mm |
| Package weight | 80 g |
| Logistics data | |
| Master (outer) case width | 524 mm |
| Master (outer) case length | 381 mm |
| Master (outer) case height | 346 mm |
| Products per master (outer) case | 120 pc(s) |
