Description

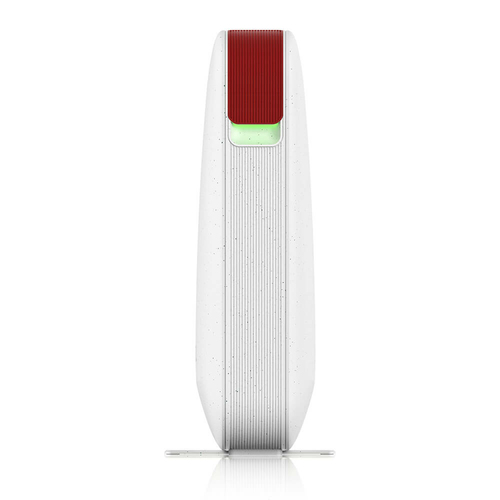

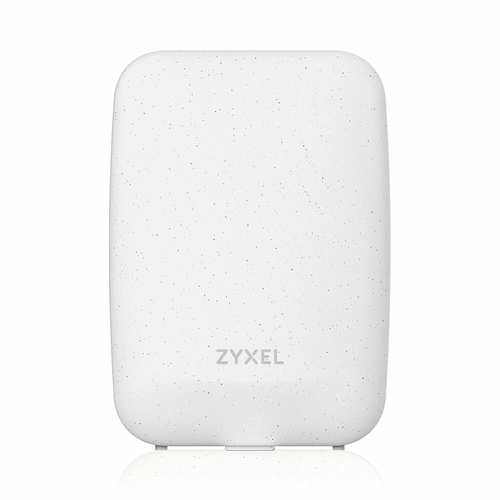

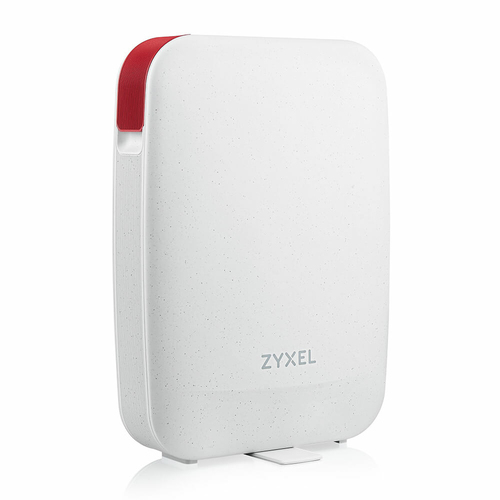

Zyxel USG-LITE 60AX, Ethernet WAN, 2.5 Gigabit Ethernet, White
Speed. Safety. Simplicity. Built-in WiFi 6 & Ransomware Protection
Specifications
| Brand | ZYXEL |
|---|---|
| Manufacturer part no. | USGLITE60AX-EU0101F |
| Our part no. | CK87910 |
| EAN | 4718937637706 |
| Category | Networking › Routers |
| Weight | 1.1 kg |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| SFP WAN | No |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Forwarding rate | 2000 Mpps |
| Switching capacity | 2 Gbit/s |
| Throughput | 2 Gbit/s |
| VLAN support | Yes |
| Port forwarding | Yes |
| Auto MDI/MDI-X | Yes |
| Policy-based routing | Yes |
| Concurrent connections | 20000 |
| Number of users | 10 user(s) |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 5 |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Security | |
| Security algorithms | WPA2 |
| Firewall | Yes |
| Guest access | Yes |
| VPN tunnels quantity | 5 |
| Technical details | |
| Introduction month | June |
| Introduction year | 2024 |
| Warranty period | 2 year(s) |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Quick start guide | Yes |
| Quick installation guide | Yes |
| User Guide on CD-ROM | No |
| Bundled software | License free Ransomware & Cybersecurity |
| Features | |
| Built-in processor | Yes |
| Processor manufacturer | Qualcomm |
| Processor frequency | 2000 MHz |
| Storage media | Flash |
| Flash memory | 512 MB |
| Internal memory | 1000 MB |
| Design | |
| Product colour | White |
| Housing material | Polycarbonate (PC) |
| Rack mounting | No |
| Wall mountable | No |
| LED indicators | Power |
| On/off switch | Yes |
| Built-in display | No |
| Touchscreen | No |
| Country of origin | Taiwan |
| Power | |
| Power consumption (max) | 31 W |
| Power source type | DC |
| Redundant power supply (RPS) support | No |
| AC input voltage | 110 - 240 V |
| Output voltage | 12 V |
| Output current | 3 A |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 161.7 mm |
| Depth | 65 mm |
| Height | 229 mm |
| Weight | 707 g |
| Packaging data | |
| Package width | 259 mm |
| Package depth | 266 mm |
| Package height | 73 mm |
| Package tare weight | 1.17 kg |
| Package weight | 1.48 kg |
| Package type | Box |
| Logistics data | |
| Shipping (inner) case height | 7.3 cm |
| Shipping (inner) case net weight | 1.48 kg |
| Products per shipping (inner) case | 1 pc(s) |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 240 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (air) | 2.2 m |
| Master (outer) cases per pallet (sea) | 24 pc(s) |
| Products per pallet (sea) | 240 pc(s) |
| Pallet height (sea) | 2.2 m |
