Description

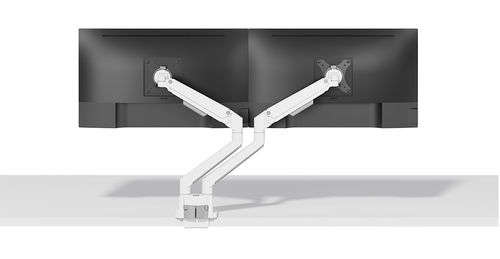

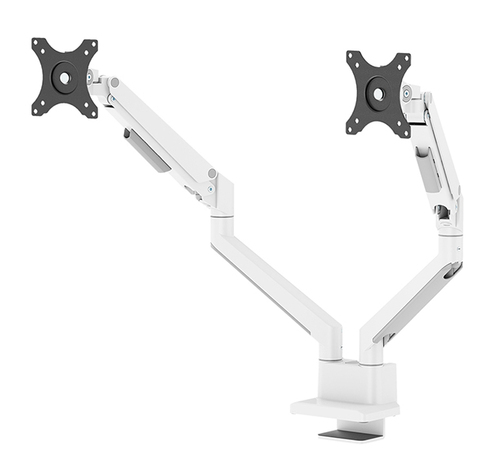

Neomounts DS70-250WH2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop, Clamp/Grommet, 9 kg, 43.2 cm (17"), 81.3 cm (32"), 100 x 100 mm, White

The Neomounts DS70-250WH2 NEXT Slim is a full motion desk mount designed for two screens up to 32", boasting a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen's capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.

The DS70-250WH2 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk.

The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.

Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.

Specifications

BrandNEOMOUNTS
Manufacturer part no.DS70-250WH2
Our part no.CK88919
EAN8717371443023
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight5 kg
Mounting
Maximum weight capacity9 kg
Minimum screen size43.2 cm (17")
Number of displays supported2
Maximum weight capacity (per display)9 kg
Maximum weight capacity (per curved/ultra-wide display)8 kg
Maximum screen size81.3 cm (32")
MountingClamp/Grommet
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Panel mounting interface100 x 100,75 x 75 mm
Desk thickness (min)1 cm
Desk thickness (max)5 cm
Distance to the wall (min)12 cm
Distance to the wall (max)40.4 cm
Ergonomics
Height adjustmentYes
Height adjustment typeGas spring
Height adjustment range215 - 495 mm
Adjustable depthYes
Depth adjustment range70 - 525 mm
Width adjustment98.4 cm
Tilt adjustmentYes
Tilt angle range-45 - 45°
SwivellingYes
Swivel angle range-90 - 90°
RotatingYes
Angle of rotation360°
Pivot angle-180 - 180°
Cable managementYes
Design
Housing materialAluminium
Product colourWhite
OrientationLandscape/Portrait
Accepts padlockNo
Weight & dimensions
Width140 mm
Depth580 mm
Height552 mm
Weight4.35 kg
Packaging data
Package width192 mm
Package depth147 mm
Package height430 mm
Package weight4.9 kg
Other features
Minimum weight1 kg
Width adjustment range0 - 984 mm
Warranty period5 year(s)
Logistics data
Master (outer) case width405 mm
Master (outer) case length310 mm
Master (outer) case height445 mm
Master (outer) case gross weight20.7 kg
Products per master (outer) case4 pc(s)
Country of originChina
Master (outer) case net weight17.4 kg
Harmonized System (HS) code7616991099
Products per pallet (EU)80 pc(s)
