Description

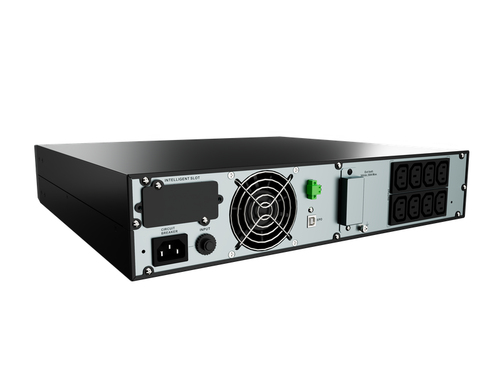

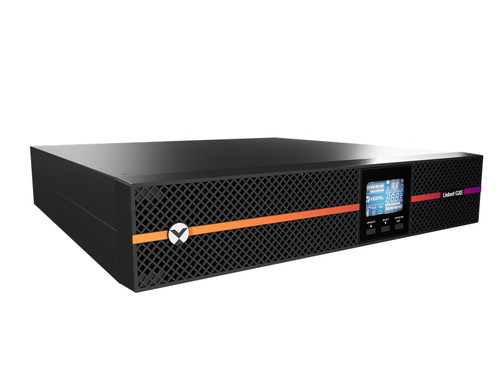

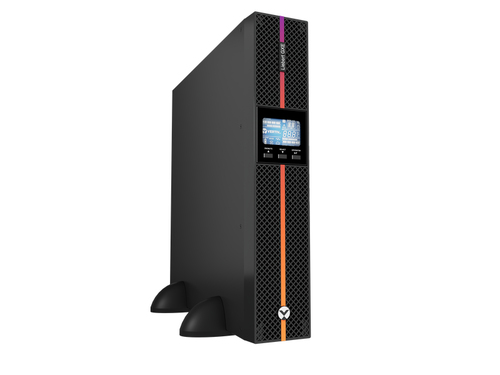

Vertiv Liebert GXE3-1500IRT2UXL, Double-conversion (Online), 1.5 kVA, 1350 W, Pure sine, 110 V, 290 V
The Vertiv Liebert GXE UPS is an affordable, efficient UPS with high output power factor (0.9PF), which enables continuous and reliable power to more connected devices. With online double conversion, this 1500VA UPS protects devices against many disturbances. It is ideal for critical applications in financial, government, and manufacturing industries. It has flexible rack/tower mounting options. Up to 4 additional external battery cabinets provide scalable runtime for those applications requiring longer period of backup in case of AC mains failures. The high efficiency in both online and ECO modes of operation (up to 95% in ECO mode) for this already affordable UPS further drives energy and operational costs savings. An optional network management card allows remote management and server shutdown. Its extended runtime and multiple monitoring options make this compact UPS ideal for delivering best-in-class power protection to equipment at the edge of networks or in remote sites.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | GXE3-1500IRT2UXL |
| Our part no. | CL00994 |
| EAN | 0767041034974 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1.5 kVA |
| Output power | 1350 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Efficiency (On-line mode) | 89% |
| Efficiency (ECO mode) | 95% |
| EMI/RFI noise filtering | Yes |
| Noise level | 53 dB |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 3 |
| Typical backup time at full load | 3.2 min |
| Typical backup time at half load | 9 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 4 h |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Product colour | Grey |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 2000 m |
| Certificates | |
| Compliance certificates | CB, CE, RCM, REACH, RoHS, UKCA, WEEE |
| Packaging content | |
| Cables included | Input power cable, Output power cable, USB cable |
| Quick installation guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 430 mm |
| Height | 86 mm |
| Weight | 19.6 kg |
| Packaging data | |
| Package width | 560 mm |
| Package depth | 600 mm |
| Package height | 235 mm |
| Package weight | 21.6 kg |
