Description

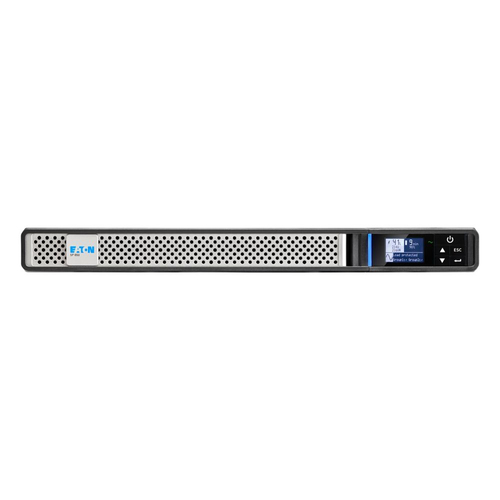

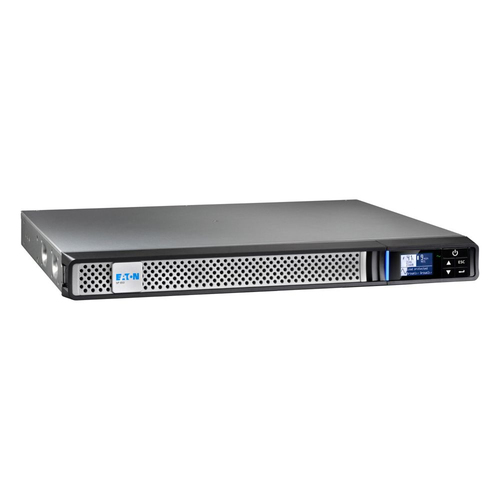

Eaton 160 -294V Input Rack Mount Uninterruptible Power Supply, 650VA (520W), 5P650I, Line-Interactive, 0.65 kVA, 520 W, Sine, 160 V, 294 V
5P650IRNG2BS
Eaton 5P Gen2 UPS, 650 VA, 520 W, Input: C14, Outputs: (4) C13, Rack, 1U, Network card, BS Input cord
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | 5P650IRNG2BS |
| Our part no. | CL10892 |
| EAN | 3553340710476 |
| Category | Power & UPS › UPS |
| Weight | 8.9 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 0.65 kVA |
| Output power | 520 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 294 V |
| Input frequency | 47/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Heat dissipation | 461 BTU/h |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 97% |
| Noise level | 35 dB |
| Ports & interfaces | |

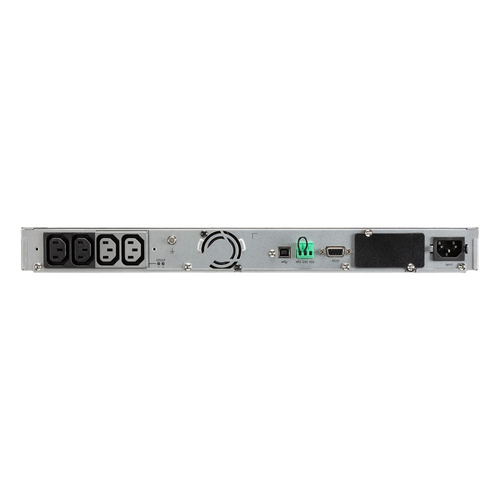

| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| USB port | Yes |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |

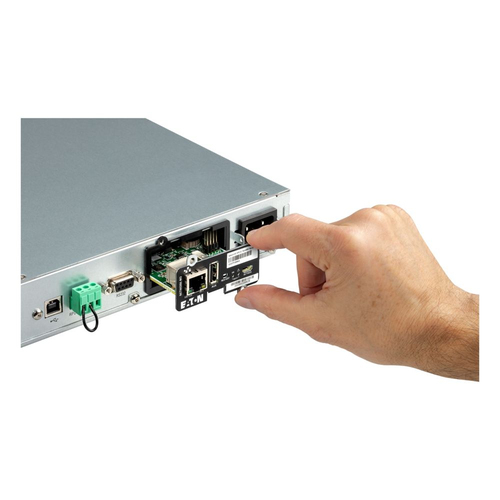

| Network card slot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 6 Ah |
| Battery voltage | 9 V |
| Number of batteries supported | 2 |
| Design | |
| Form factor | Tower |
| Rack capacity | 1U |
| Product colour | Black, Silver |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Packaging content | |
| Cables included | USB cable |
| Manual | Yes |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 361 mm |
| Height | 43.2 mm |
| Weight | 8.94 kg |
