Description

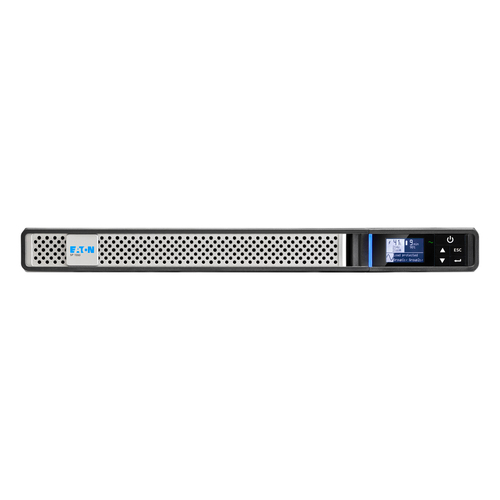

Eaton 5P1550IRNG2BS, Line-Interactive, 1350 W, Sine, 160 V, 294 V, 47/70 Hz
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | 5P1550IRNG2BS |
| Our part no. | CL10895 |
| EAN | 3553340710537 |
| Category | Power & UPS › UPS |
| Weight | 24.3 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power | 1350 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 294 V |
| Input frequency | 47/70 Hz |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Heat dissipation | 654 BTU/h |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 98.2% |
| Noise level | 35 dB |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 6 V |
| Number of batteries supported | 6 |
| Design | |
| Form factor | Tower |
| Rack capacity | 1U |
| Product colour | Black, Silver |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Packaging content | |
| Rack mount kit | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 555 mm |
| Height | 43.2 mm |
| Weight | 19 kg |
