Description
AudioCodes HD Video USB Content Camera, 2 MP, CMOS, Full HD, 1920 x 1080 pixels, 30 fps, 3x
The AudioCodes RXVCam10-CC content camera enables whiteboard content to be shared between physically present and remote meeting participants. In conjunction with Microsoft Teams AI content enhancement capabilities, the RXVCam10-CC simplifies team collaboration and brainstorming in hybrid meetings.
Easy whiteboard sharing during Microsoft Teams meetings Based on the RXVCam10 personal webcam, the RXVCAM10-CC content camera enables effortless whiteboard sharing for all participants during Microsoft Teams meetings. It provides 1080p full HD real-time video with a 3x digital zoom and is also equipped with a privacy shutter.

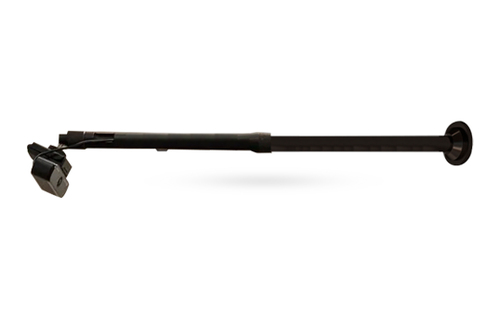

The RXVCam10-CC is designed for durability and is easy to install in any meeting room thanks to its adjustable whiteboard mount accessory.
Advanced Features Deliver Sharp Whiteboard Content In conjunction with Microsoft Teams AI, the RXVCam10-CC offers intelligent whiteboard detection and automatically adjusts the frame to include the entire whiteboard. It also offers additional content enhancements such as image sharpening, contrast adjustment and overlaying a transparent view of the presenter.
Specifications
| Brand | AUDIOCODES |
|---|---|
| Manufacturer part no. | RXVCAM10-CC |
| Our part no. | CL11182 |
| Category | Security & Surveillance › Other (1917) |
| Weight | 0 kg |
| Camera | |
| Camera type | Single camera |
| Megapixel (approx.) | 2 MP |
| Sensor type | CMOS |
| Zoom capability | Yes |
| Digital zoom | 3x |
| Focal length range | 3.24 mm |
| Horizontal field of view | 85° |
| Vertical field of view | 52° |
| Minimum illumination | 0.5 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Video | |
| HD type | Full HD |
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 30 fps |
| Video formats supported | H.264, H.265, M-JPEG, YUV2 |
| Supported graphics resolutions | 160 x 120, 320 x 180, 320 x 240, 432 x 240, 480 x 272, 640 x 360, 640 x 480 (VGA), 800 x 448, 800 x 600 (SVGA), 960 x 540, 960 x 720, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Design | |
| Product colour | Black |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Power | |
| Power source type | USB |
| DC input voltage | 5 V |
| Power consumption (typical) | 2.5 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | 20 - 95 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Packaging content | |
| Cables included | USB |
| USB cable length | 1.8 m |
| Screws included | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM |
| Weight & dimensions | |
| Width | 102 mm |
| Depth | 46 mm |
| Height | 30 mm |
| Weight | 150 g |
